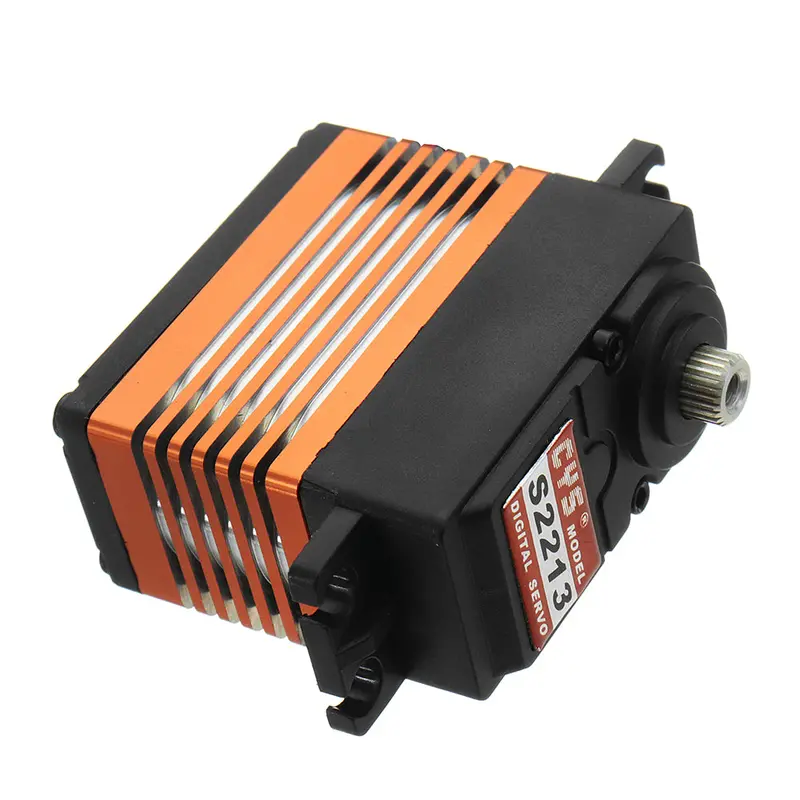

CYS-S2213 Digital Servo – 13kg-cm Torque, Standard Size, High-Response Coreless Motor for RC Helicopters and Fixed-Wing Models

Description

CYS-S2213 13KG Digital Servo Large Torque Digital Standard Servo For RC Model
Description:
Item No. CYS-S2213 Type Digital Weight 64g Size 40.1*20.1*38.8mm Control System (+)Pulse Width Control 1500usec Neutral Required Pulse Operating Voltage 6.0~7.4Volts Operating Temperature Range (-)10 to +50 degree C Operating Speed (6.0V) 0.14sec/60° at no load Operating Speed (7.4V) 0.12sec/60° at no load Stall Torque (6.0V) 12kg.cm Stall Torque (7.4V) 13kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec 360 Modifiable No Direction Anticlockwise/Pulse Traveling 1000~2000usec Current Drain (6.0V) 20mA/idle and 100mA no load operating Current Drain (7.4V) 20mA/idle and 150mA no load operating Stall Current 2.3A/2.5A Dead Band Width 2usec Motor Type Coreless motor Bearing Type Dual Ball Bearing Horn gear spline 25T Gear Type Titanium
Important Notes:   -Refer to the figure when installing the servo accessories. -For engine powered airplanes and boats, rubber must be used to reduce vibration. – Please choose correct model for your application. -Torque over-loaded will damage the servo’s mechanism-.  – Keep the servo clean and away from dust, corrosive gas and humid air.   Package Included: 1 x CYS-S2213 13KG Digital Servo
