Description
Specifications:
Hardware Parameters:
– Main FMU Processor: STM32F765(32-bit, 216MHz, 2MB flash, 512KB RAM)
Features:

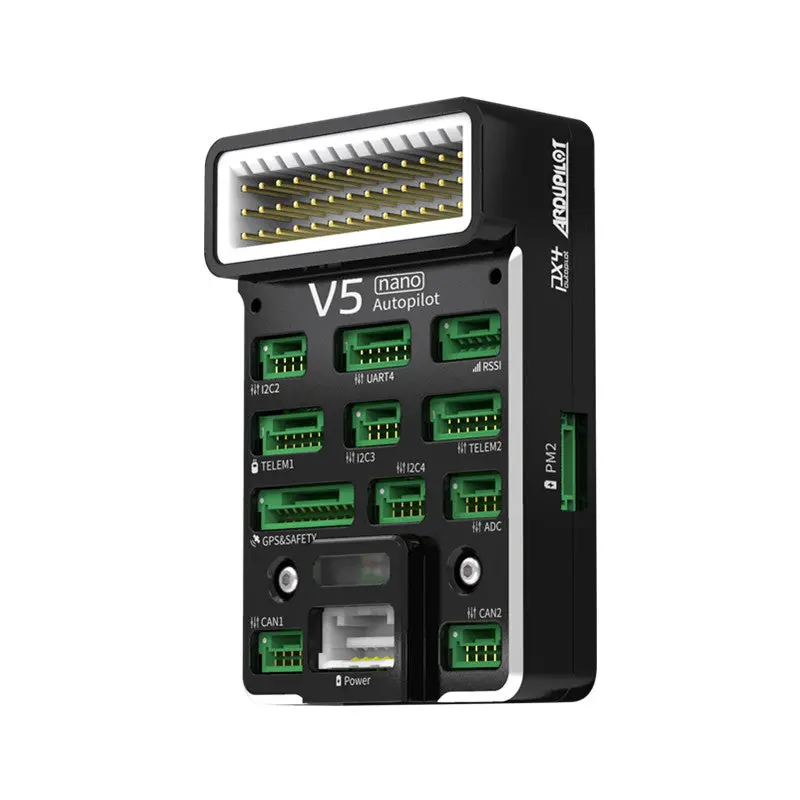

– Compact but powerful V5 nano flight controller + NEO GPS
– Support for hardware on open source platform PX4 and Autopilot
– Suitable for fixed-wing drones, helicopters, multicopters, FPVs, VTOL, Unmanned Boats, UAVs
– High Performance: Equipped with STM32F765 microprocessor, features 216MHz main frequency, 2M flash and 512K SDRAM. There are four groups of isolation chips and a MS5611 high-precision air gauge.
– Easy to install and dismantle with 2.6mm spacing between IO pins.
– Real-time Data Monitor: Five groups of built-in sensors enhance its safety and stable performance. There are ICM-20689 accelerometer and gyroscope, ICM-20602 accelerometer and gyroscope, BMI055 accelerometer and gyroscope, IST8310 magnetic compass and MS5611 air gauge.
Sensors:
– Accelerometer: ICM-20602/ICM-20689/BMI055
– Gyroscope: ICM-20602/ICM-20689/BMI055
– Magnetometer: IST8310
– Air Gauge: MS5611
Interfaces:
– UART Ports: 5
– I2C Ports: 4
– PWM Output: Up to 11
– PWM Input: 4
– Signal Input Protocol for Remote Control: PPM/SBUS/DSM
– RC IN: 1
– PPM IN:1
– RSSI Input: PWM or 3.3V analog voltage
– CAN Standard Bus: 2
– Current & Voltage Input: 1
– Safety Switch: 1
– GPS Port: 1
– Debug Port: 1
– JATG Port: 1
– USB Port: 1 (Type-C)
Supported Models:
– For PX4 Hardware: Fixed-wing Aircrafts, 3-8 Multicopters, Helicopters, VTOL, UAVs, Unmanned Boats
Working Conditions & Physical Parameters:
– PM Working Voltage: 4.5 to 5.5V
– USB Voltage: 5V±0.25V
– Servo Input: 0 to 36V
– Working Temperature: -40 to 85℃
Weight & Dimensions:
– Dimensions: 40 x 60 x 17.5mm
– Weight: 40g
Package Included:
– 1 x V5 nano Flight Controller
– 2 x Dupont Cables
– 1 x ADC6.6 Cable
– 2 x I2C/CAN Cables
– 1 x SBUS Signal Cable
– 1 x RSSI Cable
– 1 x DSM Signal Cable
– 1 x ADC3.3 Cable
– 1 x Debug Cable
– 1 x Safety Switch + Cable
– 1 x Voltage Current Cable
– 1 x PW-Link Module + Cable
– 1 x Power Suppl Module
– 1 x 16GB Memory Card
– 1 x I2C Expansion Board
– 1 x TTL Board
