Description

​

Corona CR3D/CR4D/CR6D/CR8D 2.4Ghz 3CH ~ 8CH Receiver (V2 DSSS) compatible with CT8Z/CT8J/CT8F for RC air plane fix wing drones



This listing is include multiple sales option, please option what you needing.



CR3D:

Specification:
– Operating voltage range: 4.5 – 6V
– Operating current: 30ma
– resolution: 10bit
– channel number: 3

Compatible: CT8F/CT8J /CT8Z/CT3F/CT14F(DSSS)

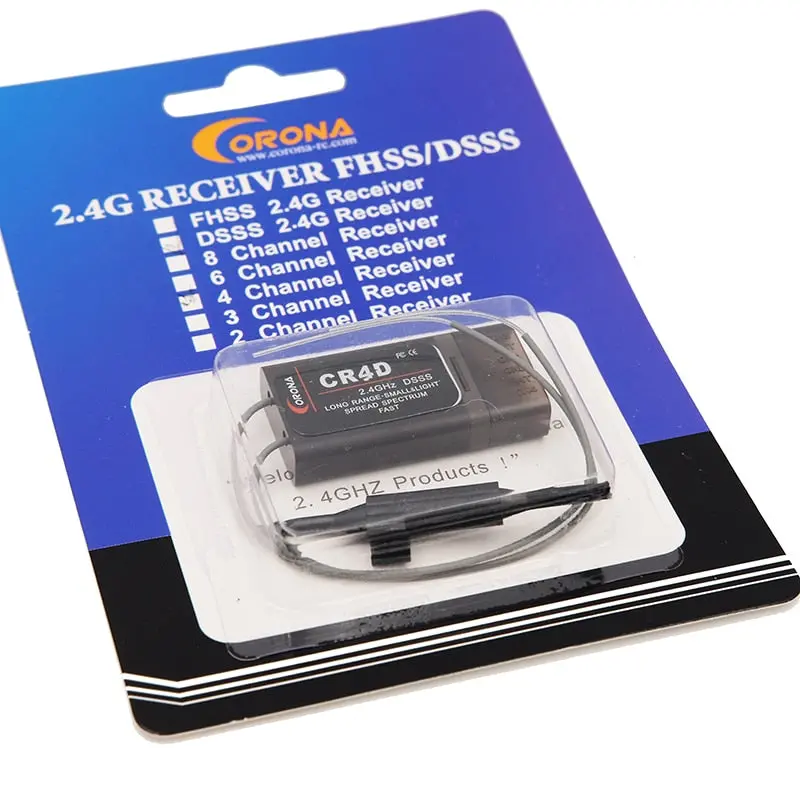

CR4D:

Corona 4 Channel 2.4Ghz DSSS Receiver.
Can only be used with Version II Futaba & JR Corona modules.

Compatible: CT8F/CT8J /CT8Z/CT3F/CT14F(DSSS)

Weight: 6g

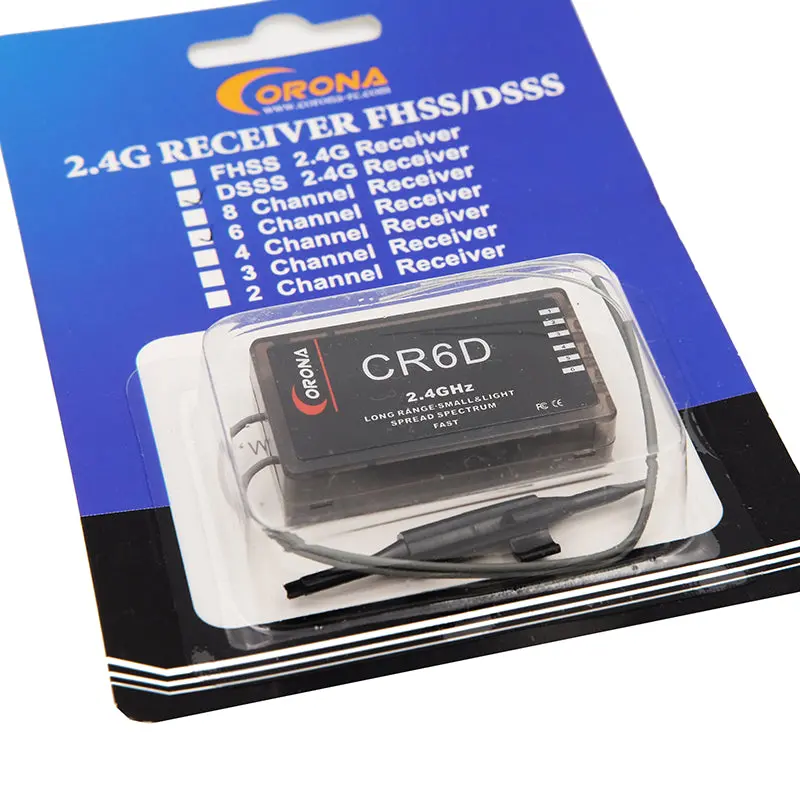

CR6D:

Specification:
– Dimensions :46.6 x 26 x 14.9mm
– 1.83 x 1 x 0.58 inches
– Net Weight : 12g
– Frequency  :2.4 GHz
– No. of Channel: 6ch
– Operating Voltage :4.8 – 6V
– Operating Current  :30mA
– Max. Distance Range  :1500M / 4900ft
– Sensitivity : -100dbm
– Transfer Rate : 128kpbs
– Resolution : 10bit
– Latency : 22s

Compatible: CT8F/CT8J /CT8Z/CT3F/CT14F(DSSS)

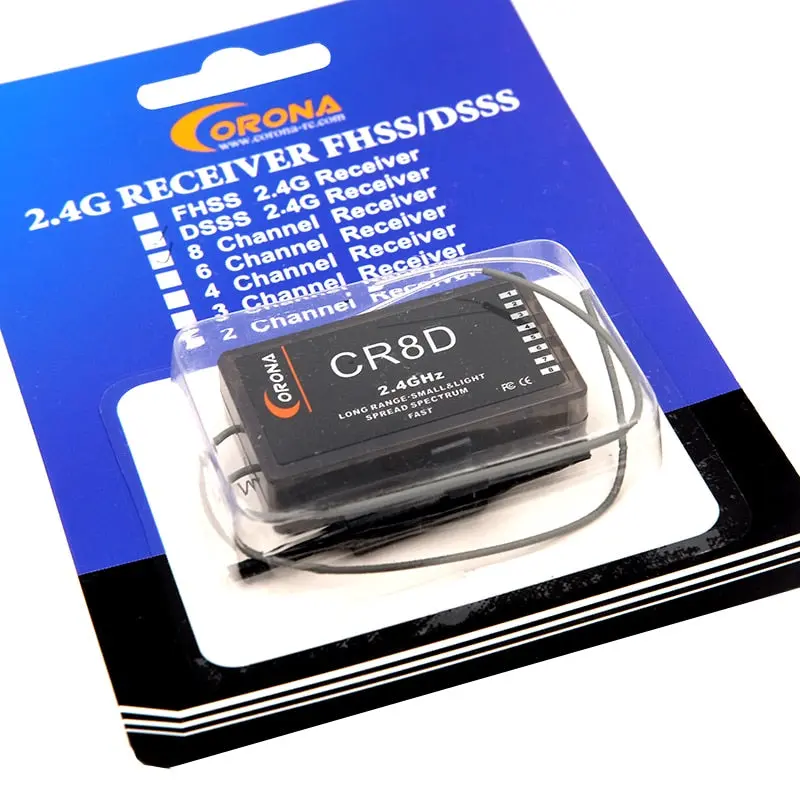

CR8D:

Can only be used with Version II Futaba & JR Corona modules. Spec. Size :   46mm*25mm*16mm
Voltage :   4.8 V – 6V
range :   more than 2100m
Operating current :   30 MA
Sensitivity :   -100dbm
Latency :   22ms



Including: One receiver
