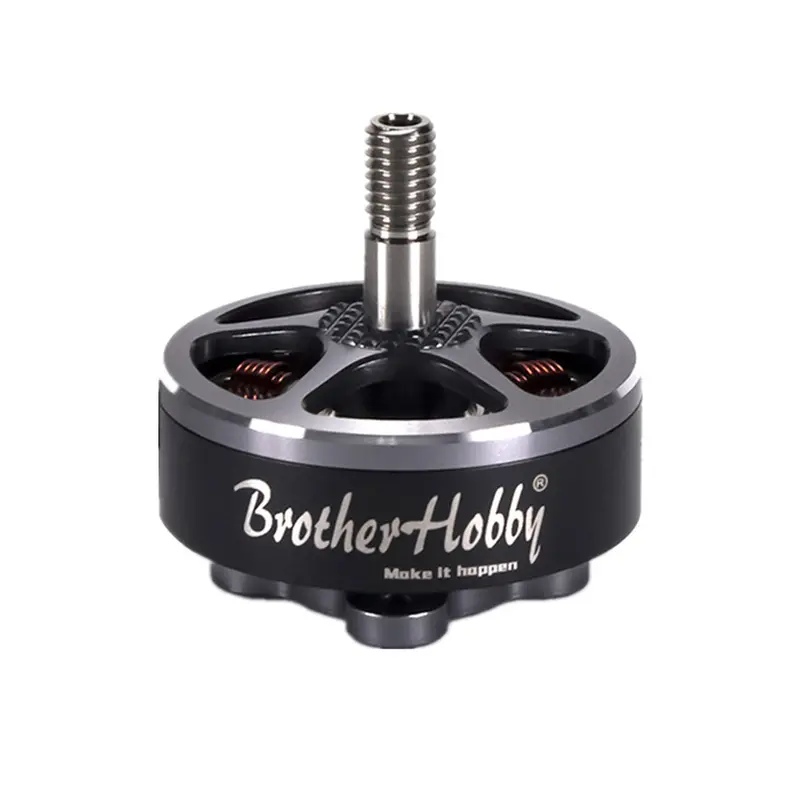

Brotherhobby Avenger 2806.5 Brushless Motor – 1300/1700KV, Optimized for 4–6S FPV Racing Drones

Description

BrotherHobby  Avenger 2806.5 1300KV 1700KV 4-6S Brushless Motor for RC Drone
Specification:
Brand Name: BrotherHobby
Model: Avenger 2806.5
Item Name: 2806.5 1300KV 1700KV 4-6S Brushless Motor
KV: 1300KV / 1700KV ( Optional)
Version: CW Screw Thread Base casing: Al 7075 Stator: 0.2mm silicon steel Configuration: 12N14P
Bell cap: Al 7075 Prop Adapter Shaft Thread: M5 Shaft: Titanium Alloy hollow shaft No.of Cells(Lipo): 4-6S Bolt Pattern: M3 (19X19mm) Motor Dimension: 33.2×33.6mm
Stator Height: 6.5mm Magnet: N52H  Internal
Resistance: 64.06mΩ@1300KV ; 44.27mΩ@1700KV Idle Current@10V:  1.01A@1300KV;  1.38A@1700KV
Max. Current: 44.4A@1300KV  ; 49.2A@1700KV
Max. Power: 1056.72W@1300KV ; 1170.96W@1700KV
Weight( include cable): 47.59g@1300KV ; 47.09g@1700KV
Package Included:
1x Avenger 2806.5 Motor
1x Motor Nut
1x bag of Screws
