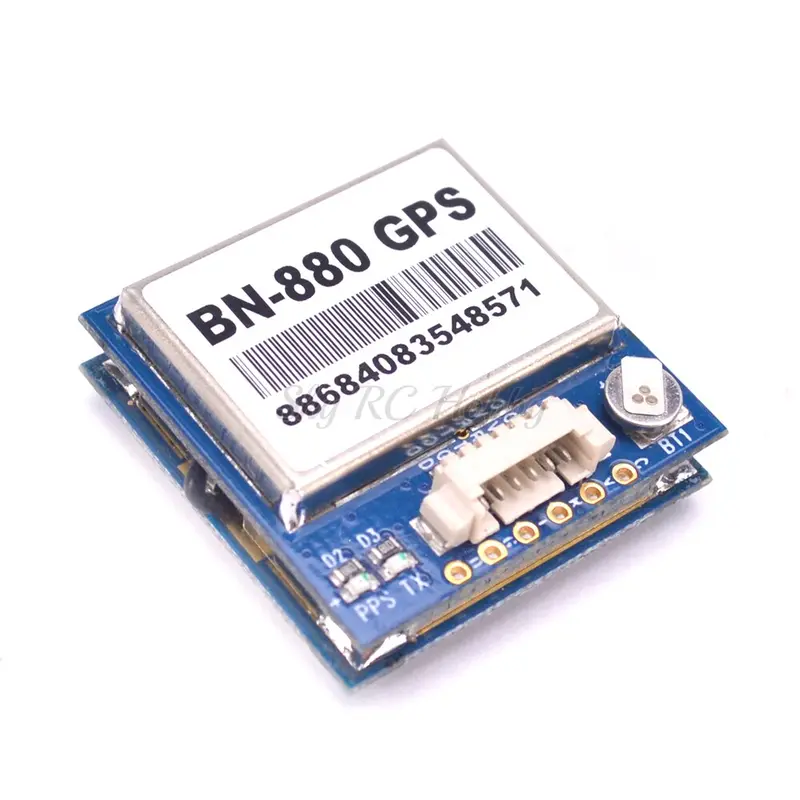

BN-880 Dual GPS & Compass Module with Cable for APM 2.5/2.6/2.8, Pixhawk 2.4.7/2.4.8, and PX4 Flight Controllers

Description

Description:

Model:BN-880  Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V Consumption: Capture 50mA@5V Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS Receiving Channel: 72 Searching Channel Receiving Sensitivity: Trace -167dBm                                     Capture-148dBm Positioning Time: Cold Start:avg26s                              Warm Start:avg25s                              Hot Start:avg3s Level Positioning Precison: 2m At Open Wind Output Frequency: 1Hz-10Hz,Default 1Hz Speed Precison: 0.1 m/s (Without Aid) Acceleration Precison: 0.1 m/s (Without Aid) Dynamic Characteristics: Max Height:18000m                                          Max Speed:5153m/s                                          Max Acceleration:4G UART Interface:UART Port: TXDA and RXDA                           Support Rate: 4800bps to 115200bps,Default 38400dps Working Temperature: -40-+85 Storage Temperature: -40-+85 Size: 28mm x 28mm x 10mm Weight: 10g The Module’s Pins: SDA,GND,TX,RX,VCC,SCL     Features:   GPS Module,Dual Module Compass With electronic compass IC HMC5883L 1.25mm spacing between the 6pins patch seat   Note:Can not use for flight control with SCM,but it is suitable for Open source flight controller.       Pcakage Included:   1 x BN-880 GPS Module    1 x 15cm Cable
