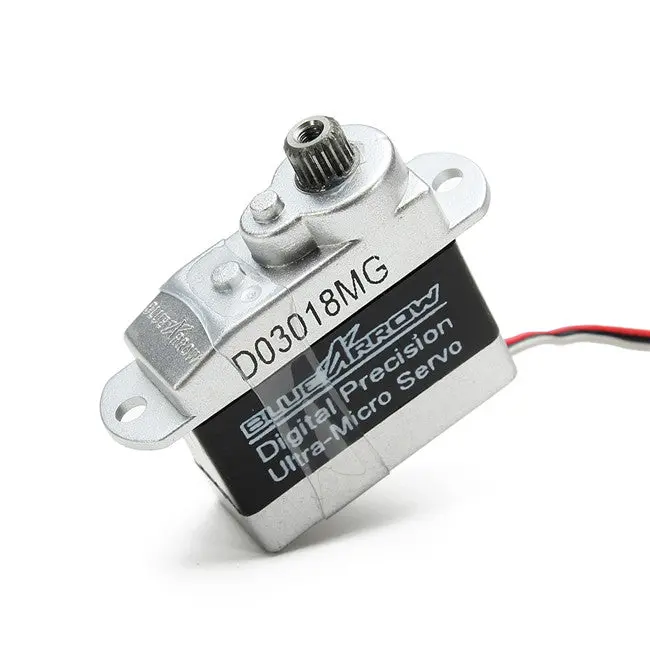

BlueArrow D03018MG Ultra-Micro Digital Metal Gear Servo for XK K120/K130, Walkera V120D02S & 130X Helicopters

Description

Digital Precision Ultra-Micro Metal Gears Servo For V120D02S 130X
-the forward one is suitable for  walkera V120D02S Swashplate/Tail Servo -the opposite one is suitable for Horizon 130X Tail Servo, XK K120 Swashplate/Tail Servo
Description:
Name: Digital Ultra-Micro Metal Gears Servo
Torque: 0.30kg-cm@ 5.0V
Speed: 0.09 sec/60° @5.0V
Size: 20×8.30×16.40mm
Weight: 3.7g
Motor Type: Coreless
Connector Type: JST-ZHR(1.50mm)
Gear Type: All metal gears
Current Draw Idle: 30mA @ 5.0V
Current Draw Stall: 250mA @ 5.0V
Operating Voltage: 5.0V DC
Features:
-Digital amplifier for superior accuracy,response and holding torque.
-All metal gears(special aviation aluminum with galvanization Ti on the surface)
-Can be programmed
-Precise centering – less than 0.5°
-Lightweight,just 3.7 grams
-JST-ZHR(1.50mm) connector is compatible with Spektrum Nanolite AR6300 & AR6310 receivers.
-Digital high speed high torque precise centering servo is perfect for electric indoor Ultra/sub-micro flyers,slow flyers,small park flyers.
Package Includes:
1x Metal Gears Servo
1x Instruction
3x Adaptor
,,,,,,
