Description
Description:
Item name: omnibus F4 flight controller
Size: 36x36mm
Mount holes: 30.5×30.5mm
Weight:7g
STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time.
Using F4 MCU controls OSD over SPI bus in DMA mode.
OSD Configation has been included in Betaflight GUI.
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
With BARO
SPI Sensor MPU6000
Included 128Mbit Flash, please always use BEC for the FC.
Supported by BETAFLIGHT and dRonin
Package:

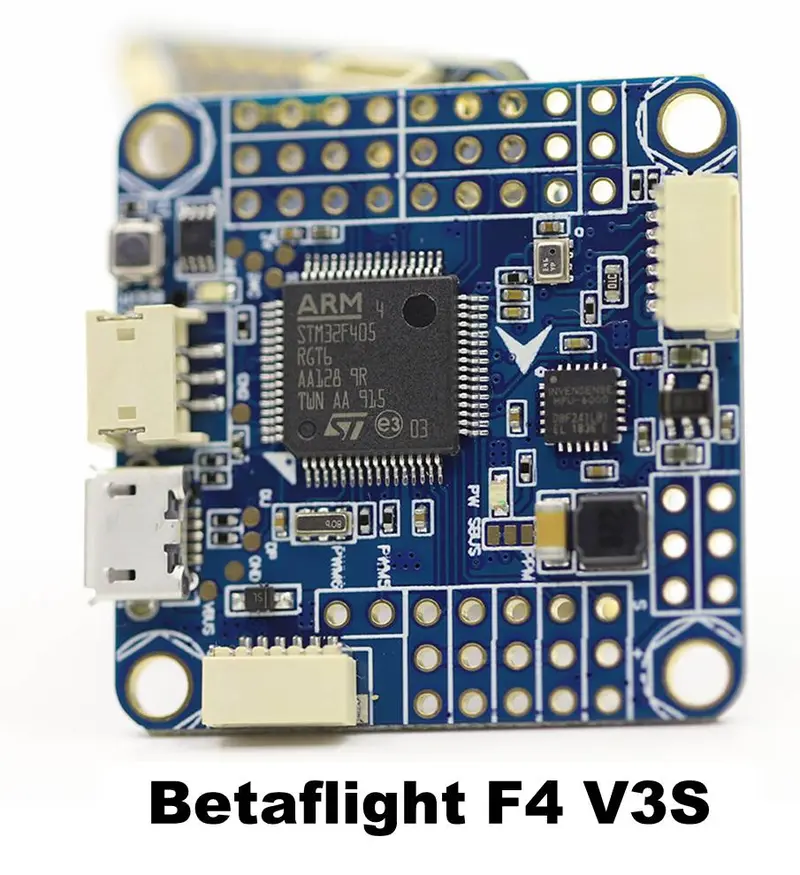

1 x omnibus F4 V3S flight controller

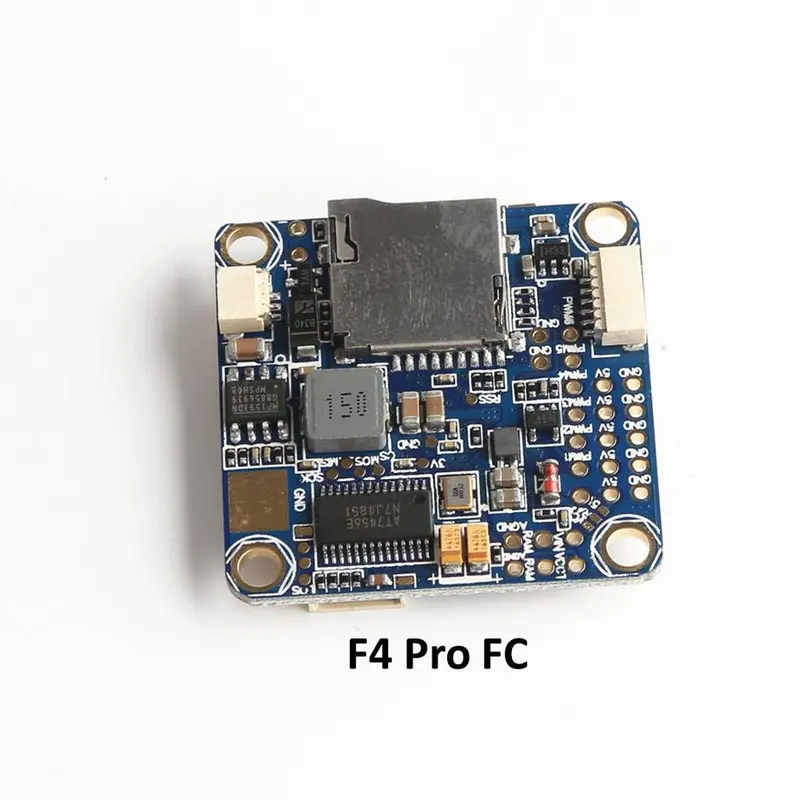

F4 V3 Pro
Properties:
Following in the footsteps of the omnibus F3 Pro, the omnibus F4 Pro V3 can be the standard by which all other flight controllers are measured. Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you’ll be tuning pids with your transmitter and Tear it to the track in no time! With leaps and bounds in programming, it’s now possible to connect their Smart Audio VTX location like the TBS Unify Pro 5G8 HV or TBS Unify Pro 5G8 HV Race Edition to the J10 header with our omnibus smartaudio plugs and make VTX changes on the fly through the Betaflight OSD.
Specification:
Item name: F4 Pro V3 Flight Controller Size: 36x36mm Mounting holes: 30.5×30.5mm STM32 F405 MCU Dshot support Drag and Drop OSD configured via Betaflight Configurator Smart Audio v2 support Tune your PID’s and configure the omnibus fc from their transmitter MPU6000 6 axis SPI gyro & accelerometer SBUS / PPM AND Spketrum DSMX ports MicroSD card blackbox Baro (BMP280) 5v3a SBEC On-board video filters (only 5V to VTX and camera) SmartAudio V2 via tx6 to J10 4 × 3 pin ESC pin layout IR pins for lap timing transponder
Package included:
1 * F4 Pro V3 Flight Controller
