Description
Cost-effective Beitian Beitian GPS, can be used with F3 F4 F7 and other flight controls. The module adopts GPS+GLONASS dual mode, and the search star is fast, and the positioning accuracy is high.

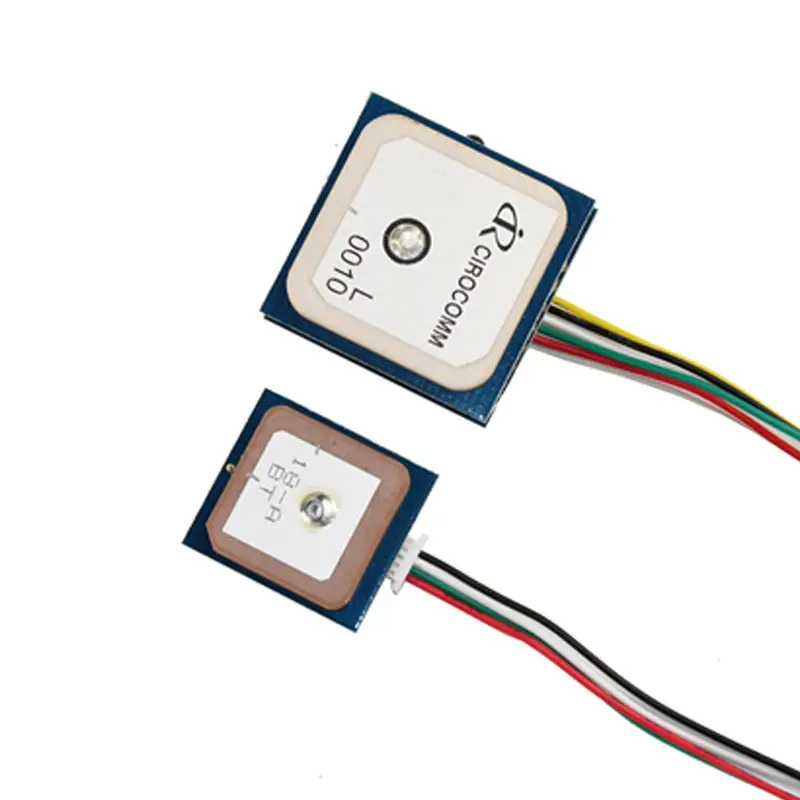

Mini size, does not occupy the installed volume, easy to install and fix.BN-220 GPS ModuleDimension : 22mm*20mm*6mmModule Weight : 5.3gConnector : 1.00mm spacing between the 4pins patch seat SpecificationElectrical CharacteristicsChipset : M8030-KTReceiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBASFrequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1Channels : 72 Searching Channel SensitivityTracking : -167dBmReacquisition : -160dBmCold start : -148dBmHot start : -156dBm AccuracyPosition Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)Velocity : 0.1m/sec 95% (SA off)Timing : 1us synchronized to GPS time Acquisition TimeCold Start : 26sWarm start : 25sHot start : 1s Data and Update RateSupport Rate : 4800bps to 921600bps,Default 9600bpsData Level : TTL or RS-232,Default TTL levelData Protocol : NMEA-0183 or UBX, Default NMEA-0183Single GNSS : 1Hz-18HzConcurrent GNSS : 1Hz-10Hz,Default 1Hz Operational LimitsAltitude : 50,000m MaxVelocity : 515m/s MaxAcceleration : Less than 4g Power consumptionVCC : DC Voltage 3.0V-5.5V,Typical: 5.0VCurrent : Capture 50mA/5.0VOperating temp : -40 °C ~ +85°CStorage Temp : -40°C ~ +105°C Indicator :TX LED:blue.The data output, TX LED flashingPPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed Wiring:GND,TX output,RX input,VCC(3.0v-5.5v)
