Auxiliary 3–4 Function Logic-Level Amplifier Board for 21MTC Decoders – Laisdcc 860052

Description

Description

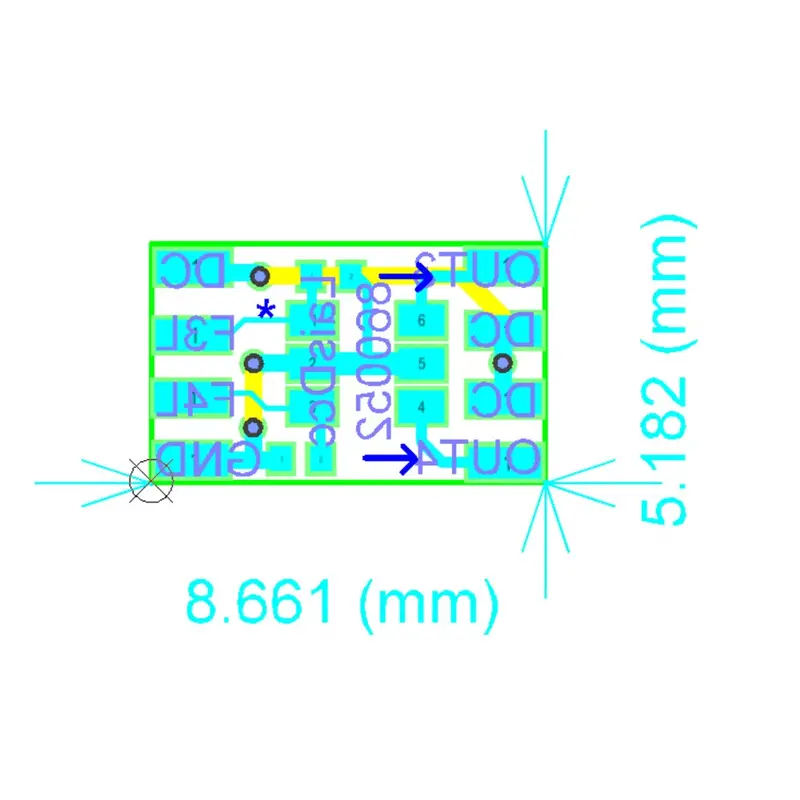

The Aux 3-4 Function Board offers a clean way to convert the logic outputs provided on DCC decoders made by LaisDcc, ESU, Zimo, Dcc Concept and others into useable, function outputs.Now you turn that four-function LokSound into a six-funtion decoder and light up your loco like a christmas tree.You can use two piece for F5 and F6 logic output also.8.7mm x 5.3mm x 2.6mm1A Function OutputsTwo OutputsDCGNDOUT3OUT4F3LF4LDC= Blue Wire of decodersGND= GND of decodersF3L= F3 logic output of decodersF4L= F4 Logic Output of decodersOUT3= Amplified F3OUT4= Amplified F4
