Description

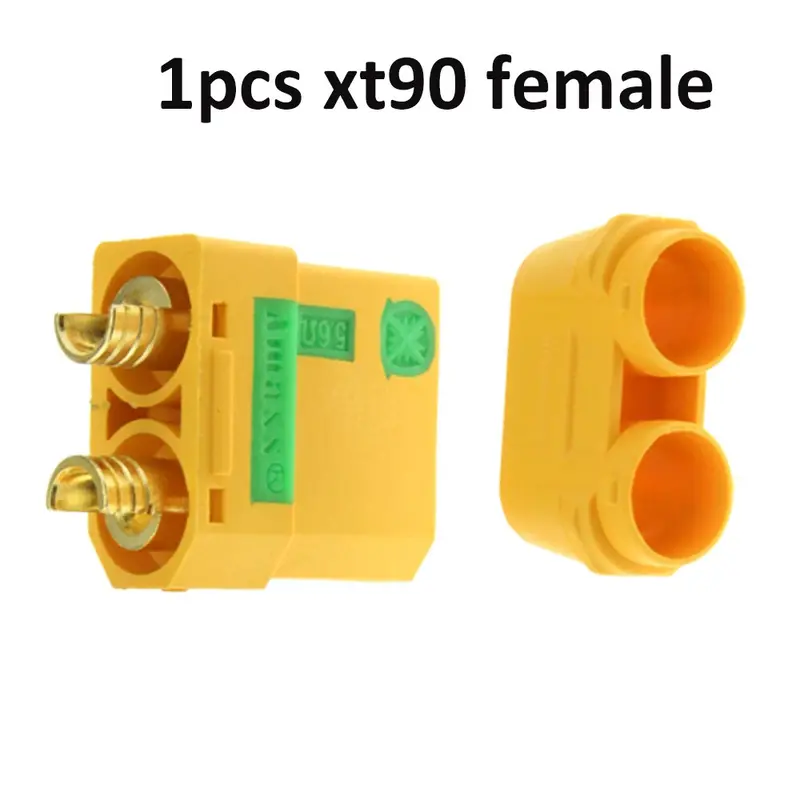

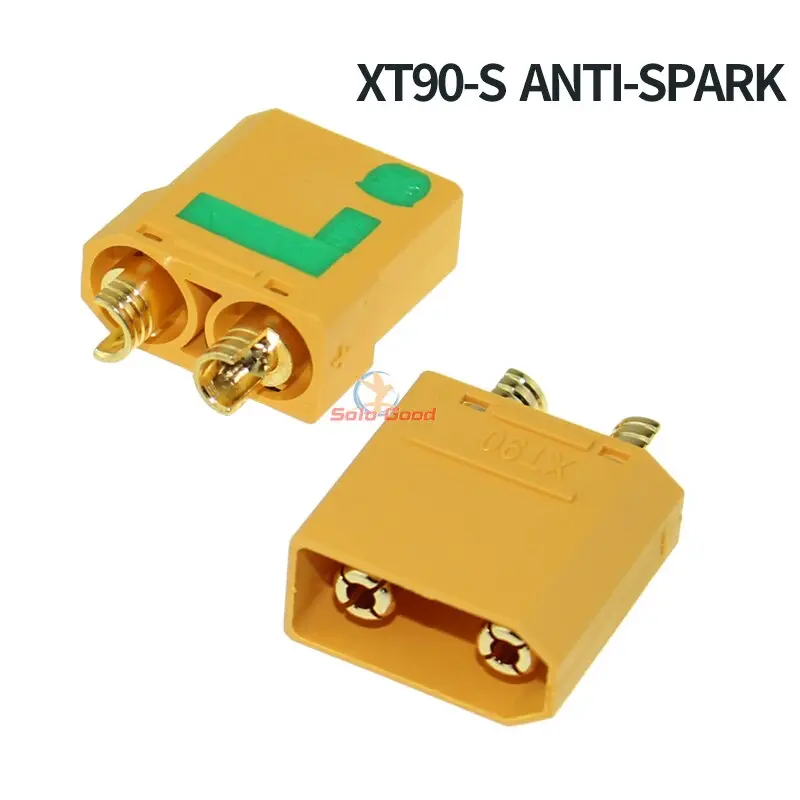

 XT90S XT90-S XT90 Connector Male Female with Housing FPV Drone Battery Connector Plug for FPV RC Quadcopter Brushless Motor

Features:
100% Original Amass
AMASS Patented Anti-Spark Design!
Reusable Conector end design for times insert and take off from the Enclosure.
New style design with the shining and safety construction.
Non-slip insulator, easy to connect.
Clear “+” and “-” mark, avoid the mistake.
Accurate size, perfect connection prevent any inside pollution.
Advanced caseting technology,and integrated with banana plugs fully and closely.
The groove slot design make the connection stronger and avoid any mistake when you use it.
2U thickness gold plating, we use the large flow-line design banana plug which have a larger contact area,
although 3.5mm banana plugs, but can be sustained a constant current 90A,120A current peak.
Material of Housing: Heat-resistant nylon material(high temperature resistance to 240°C)
Material of connector : 2U thickness Gold hplated copper
Stable current: 90A /Max. 120A
Temperature resistant:-30°C ~ 240°C
Compatible with AMASS XT90 connector
Product id: XT90-S
Adopts 4.5mm banana plug, upgrade version
Light weight, small size, high current indurance performance
Unique anti-spark design, compatible with XT90.
Application:
The male plug is for ESC, female plug is for battery
Kindly note:
Any concern or question if you have ,pls feel free to contact us,we will solve it for you in the first priority.Thank you.
