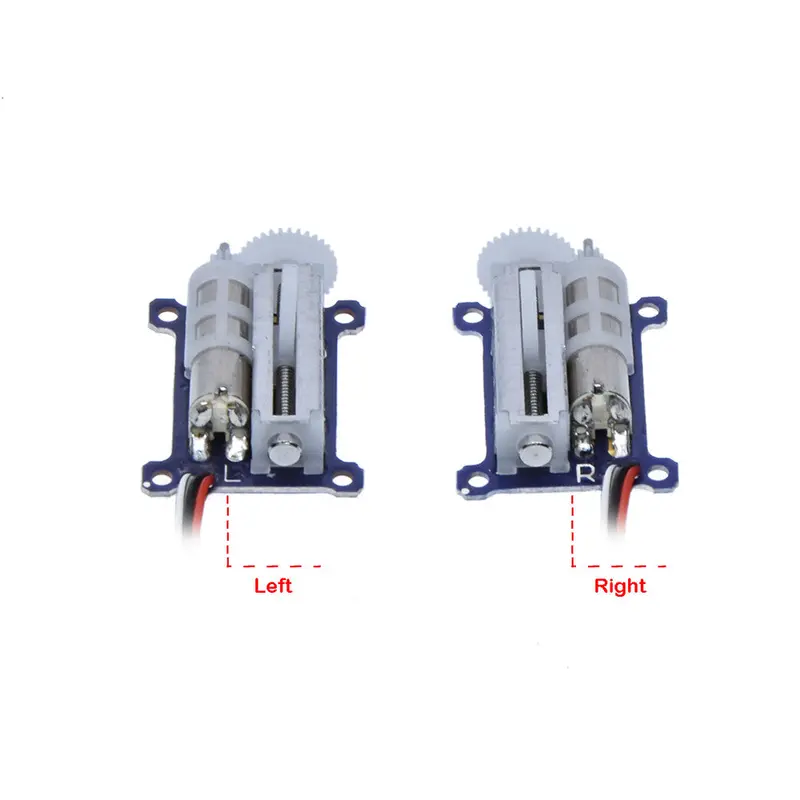

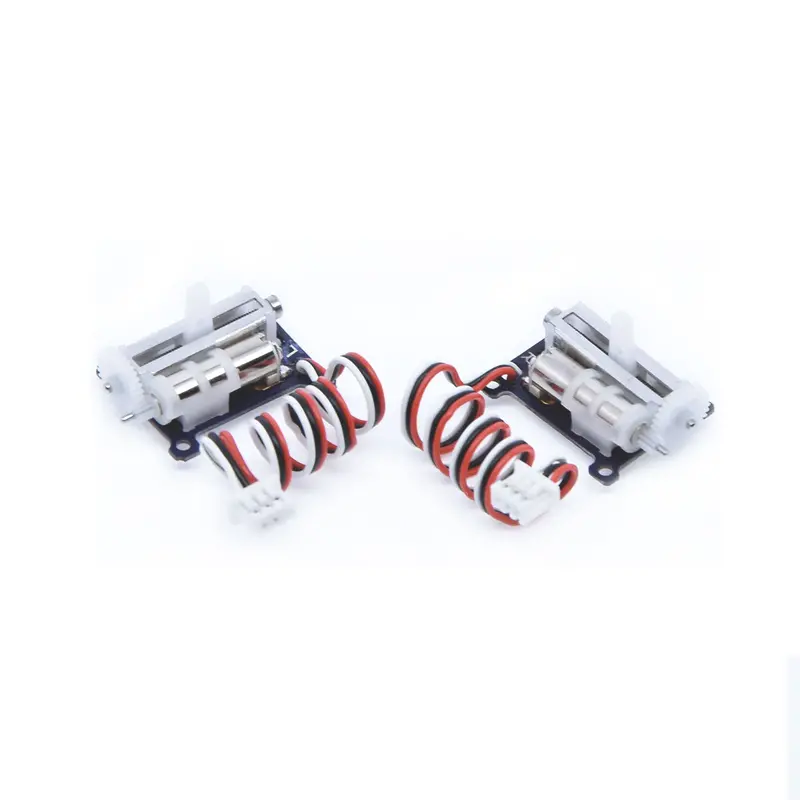

AFRC-D10115 1.5g Linear Micro Servo – Digitally Controlled Lightweight Actuator for Indoor 3D RC Aircraft

Description

AFRC-D10115 1.5g Linear Servo Miniature Micro Lightweight with Digital Controller for AFRC-D1015 Indoor 3D Small RC Aircraft Mini Tiny Drone   Features: Miniature and exquisite design, ultra-light weight (only 1.5g, including line 1.9g) Adopt digital controller, hollow core motor and precision structural parts Micro-rudder large torque (0.24kg.cm); speed sensitive (0.15sec.cm); large stroke (7mm) Application: helicopter, fixed wing, indoor 3D flight, robot, 3D printer, industrial intelligence, etc.     Basic parameters: Size: 21.4 x 15.2 x 6.0 mm Weight: 1.5g (excluding line) Working voltage: 3.7~6.0V Torque:  3.7V: 1.67 oz-in (0.12 kg-f)  /  6.0V: 3.33 oz-in (0.24 kg-f) Speed: 3.7V: 0.12 sec/cm  /  6.0V: 0.08 sec/cm Motor type: hollow cup Outlet: JST1.25mm L=100 mm (red+, black-, white S); JST1.0mm, JR, Futaba L=100 mm (brown-, red+, orange S) Please pay attention to distinguish before powering up!   Package Included  1 x Micro Servo
