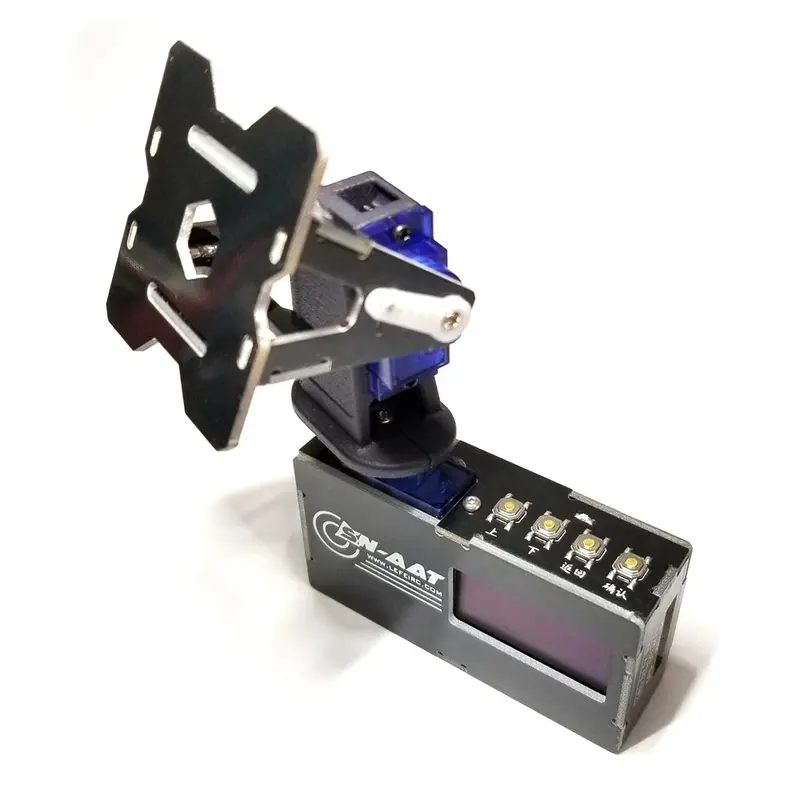

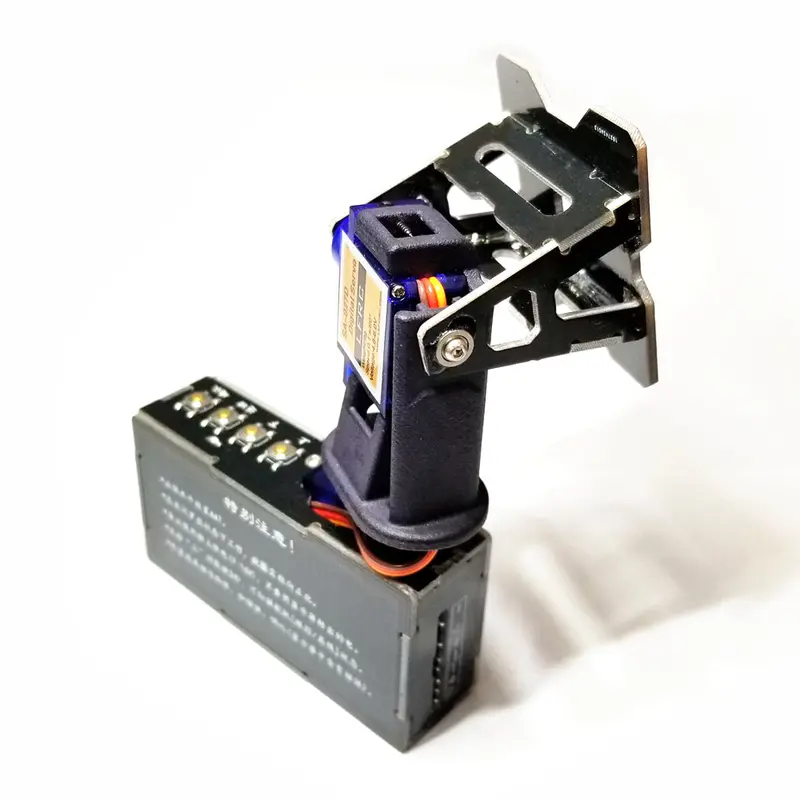

AFPV SN-AAT Auto Antenna Tracker – Dual-Axis Gimbal for Fixed-Wing RC Aircraft FPV

Description

Description:
AAT – Auto Antenna Tracker. SN-AAT uses an efficient video signal superposition algorithm,SN-L(Airborne module) superimposes information such as GPS onto video,then transmits the video to AAT through the video transmitter,completes information encoding-transmission decoding; AAT aligns the antenna with the aircraft in real time based on the acquired aircraft position information,and outputs its information according to mavlink protocol or screen output.
Ground Terminal Specifications:Brand Name: AFPV
Item Name: SN-AAT
Operating Voltage:2S-4S(7-16V)
Weight: 85g Dimension: 74x94x42mm Max. Load Weight: 100g Max Load Size: 85x85mm Pitch Angle: 0-180° Horizontal Rotation Range: 0-180° Video Input: Must be connected during normal work GPS: Plug and play Compass: Try to avoid disturbing the compass
Model: SN-AAT Ground Terminal, GPS Module, bluetooth Module (optional)
Features:
– Compact design,easy to use,easy to carry.  – Standard video transmission channel, superimposed signals for better compatibility. – Support MAVLINK protocol,real-time path display with GCS such as QGC. – Support compass and gyroscope.  – Support GPS,dynamic positioning.   – Automatically select and save the takeoff position.  – Support OLED display, common information such as speed, height, distance, etc.  – Plug and play. – Easyest connection with 2 wires only.
English Manual, Click Here
Package Included:
1x SN-AAT Ground Terminal (not includes GPS and bluetooth module)
or
1x GPS Module(28x28x10mm/12g) or
1x bluetooth Module
