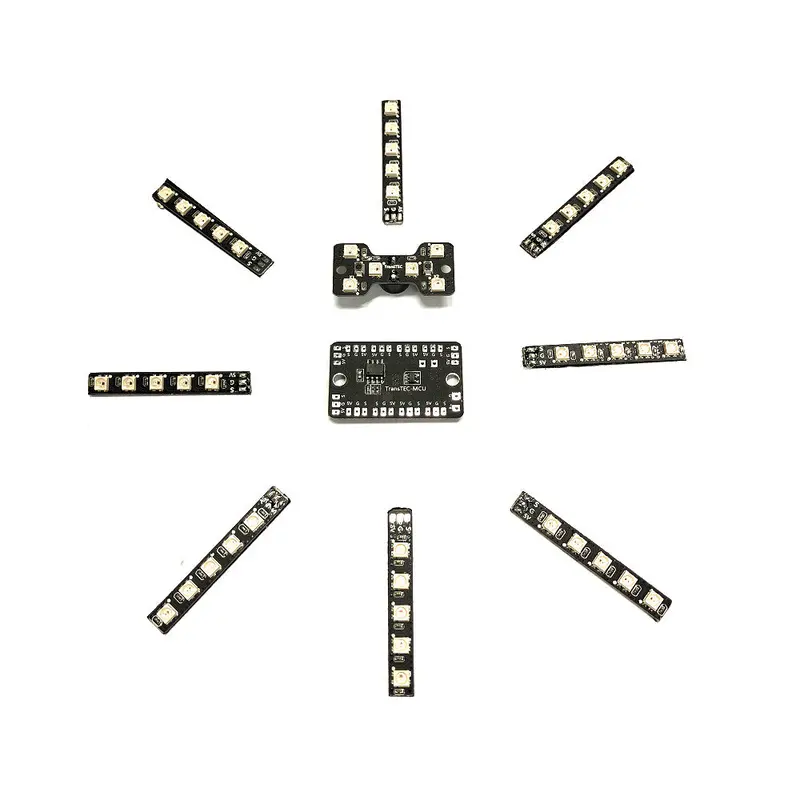

8 Pcs TransTEC 5 LED Strip Light MUC Controller Board & Tail LED Light with Loud Buzzer for RC Drone
Specification:
Brand name: TransTEC
Item name: LED Strip Light
Mainboard:
Input power: 6-30V Output Voltage: 5V
Output Current: 3A
5 LED strip light:
Voltage: 5V Working current: 100mA

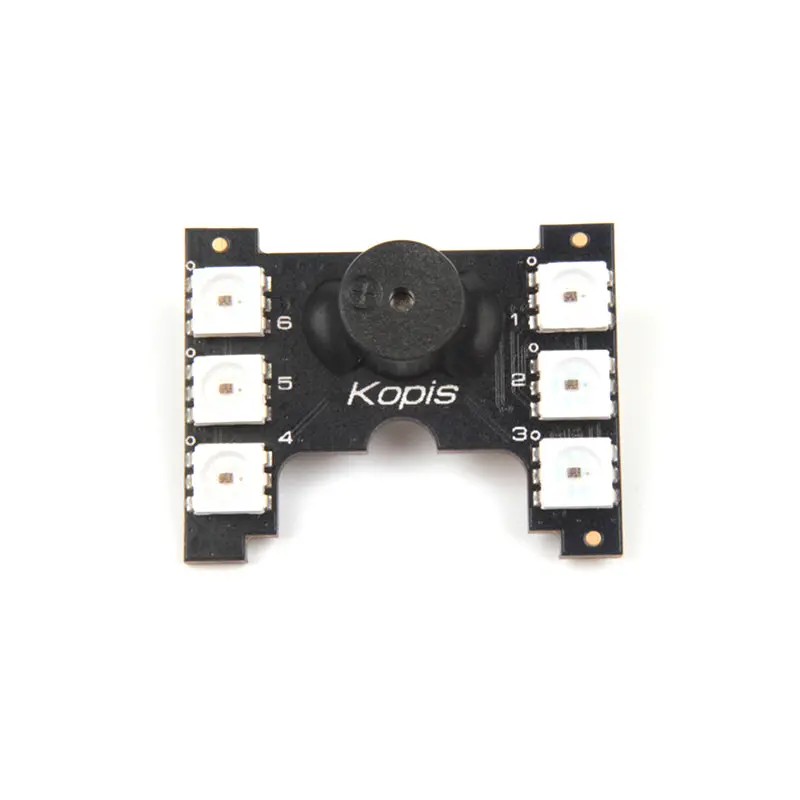

Tail light:
Voltage: 5V Working current: 120mA
SIze: 5 LED lights: 43.3mm*6.1mm Tail light: 35.5mm*16mm Pitch: 29mm
MCU Controller Board: 35.5mm*22mm Pitch: 29mm
Description: 1. Power on, the light is on. 2. Press (K1) for 2 seconds to enter the color setting (all lights flash), switch the color through switch (K1, K2); after switching the color, press and hold (K1) for 2 seconds to save and exit the current mode. 3. Press (K2) for 2 seconds to enter the brightness setting (all lights flash twice), K1 controls brightness +, K2 controls brightness -; after adjusting the brightness, press and hold (K2) for 2 seconds to save and exit the current mode. 4. Press K1 for 4 seconds to enter sleep mode (lights off). When in the color setting mode, if you exit the current mode without saving, you cannot adjust the brightness. When in the brightness setting mode, if you exit the current mode without saving, you cannot adjust the color. After setting the brightness color, you need to save it. Otherwise, it will not save the last operation after powering up again next time.
Package Included:
8 X 5 LED Strip Light
1 X MCU controller board
1 X Tail light
