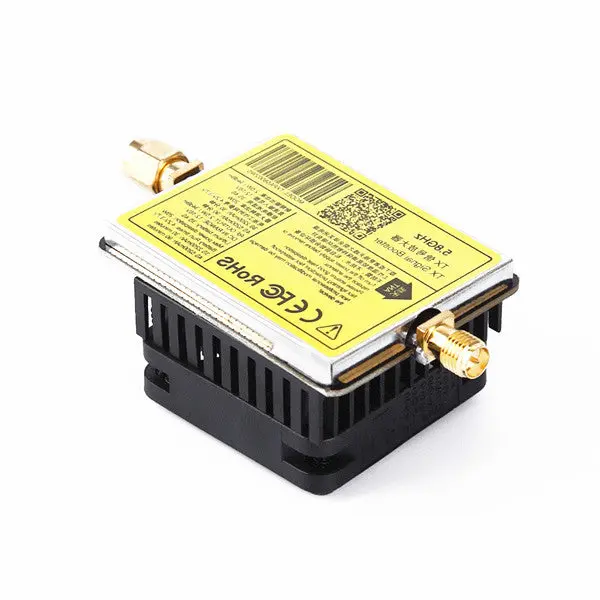

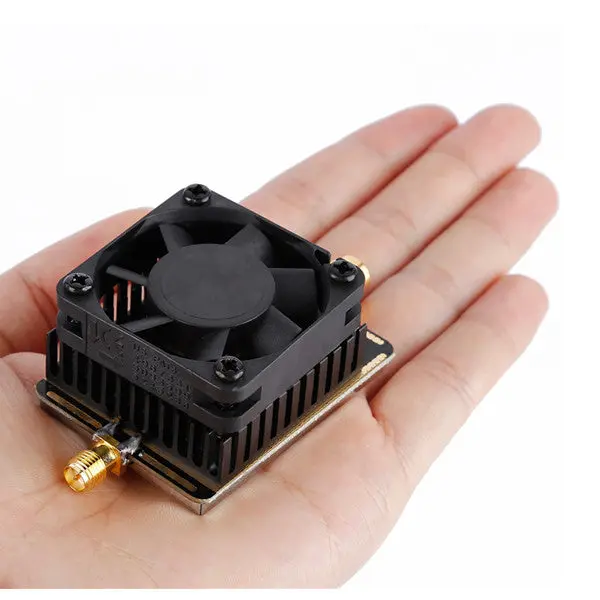

5.8GHz Signal Booster Board (3W/4.5W) for FPV Transmitters – Extends Range Beyond 600mW Systems

Description

Specification:
Frequency range: 5-6GHz DC voltage input range: 12-16v Cooling method: active magnetic suspension fan Lithium battery Scope: 3S 4S Gross weight: 50g Maximum power consumption: 20W Maximum input power: 600mW / 27.8dBm Maximum output power: 2500 mW / + 34 dBm Box size: 10x10x4cm Output Connector Type: RP-SMA jack Input Connector Type: RP-SMA plug Lithium battery working time reference: 3S 2200mAh: 30 minutes                                      4S 5200mAh: 90 minutes Operating temperature: 80°
Connect 200mW transmitter, output 3000mW Connect 600mW transmitter, output 4500mW Note: can only be used for the transmitter below 600mW, wireless router can not use this amplifier
Package included:
1 x 5.8G 3W/4.5W Signal Enhancement Board Booster Extended Range
