Description
Specifications:

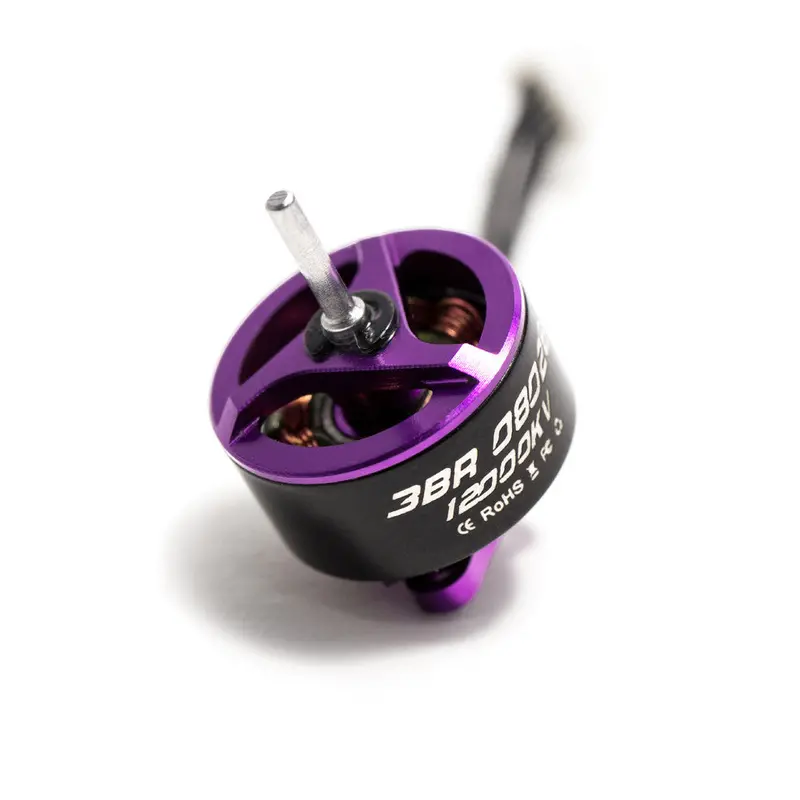

Brand Name: 3BHOBBY
Item No.: 3BR-08028
KV: 12000/16000KV
No.of Cells(Lipo): 1S-2S
Stator Diameter: 8.4mm
Stator Height: 2.8mm
Shaft Diameter: 1mm
Motor Dimension (Dia.*Len): Φ10.7×14.4mm
Weight(g): 2g(Excluding Cable)
Wire Szie: 30AWG 30mm (3 PIN,1.25mm)
Suggested Propeller: 1.5’’
Recommend ESC: 6-8A
Frame Size: 65-90mm
Features:
1. Perfect stator size among 0802 & 0803. 08028 is of our initial design and we developed our own stator molding . It’s lighter than 0803 while has a lot more torque than 0802. Gathered both advantages of 0802 and 0803.
2. We’re the pio neer of choosing NSK 681 ball bearing for such tiny motors. Compare to traditional oil-impregnated bearing, the smoothness and durability is superior. Also came with less noise.
3. Integrated magnet lining, less gap and stronger magnetic field was created in a limited tiny surface.
4. Equipped with high grade stainless steel shaft, ensured durability.
5. Quality 0.2mm Kawa saki Silicon steel stator, less iron loss and better cooling performance.
6. Lighter design, single motor weighs 2g only yet brings satisfied thrust and efficiency.
7. Suggested for 65-90mm frame size.
Package Include:
1 X 3BR-08028 Motor
5 X M1.4*3 Round head cross SUS screws
