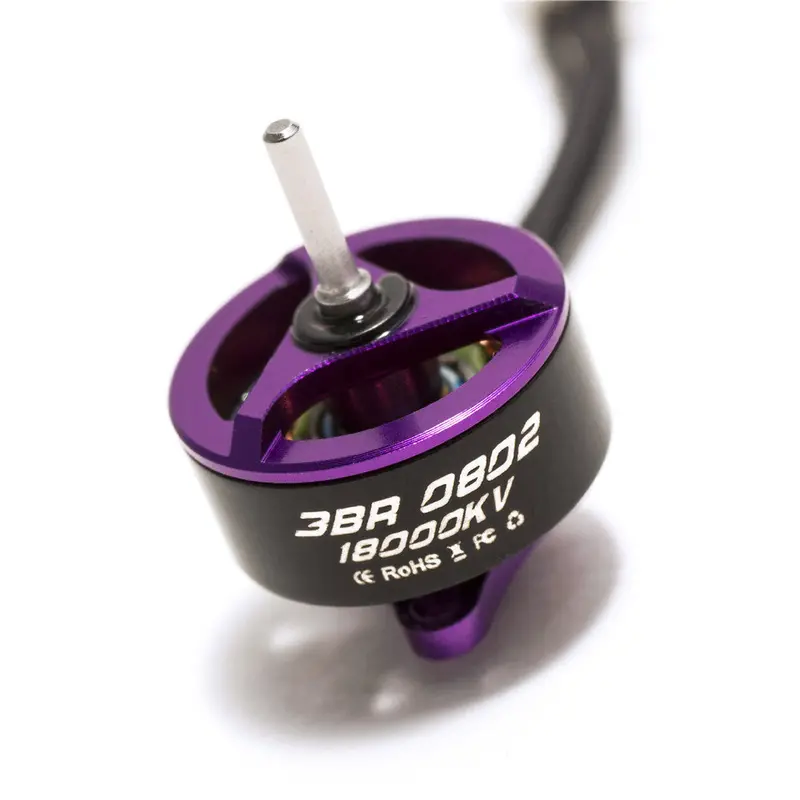

3BHobby BR-0802 Brushless Motor — 12,000–18,000KV, Optimized for 1S–2S Micro Drones

Description

Specifications:
Brand Name: 3BHOBBY
Item No.: 3BR-0802
KV: 12000/13500/18000KV
No.of Cells(Lipo): 1S-2S
Stator Diameter: 8.4mm
Stator Height: 2mm
Shaft Diameter: 1mm
Motor Dimension (Dia.*Len): Φ10.7×13.6mm
Weight(g): 1.7g(Excluding Cable)
Wire Szie: 30AWG 30mm (3 PIN,1.25mm)
Suggested Propeller:1.2-1.5’’
Recommend ESC: 5-6A
Frame Size: 65-80mm
Features:
1. We’re the pio neer of choosing NSK 681 ball bearing for such tiny motors. Compare to traditional oil-impregnated bearing, the smoothness and durability is superior. Also came with less noise.
2. Integrated magnet lining, less gap and stronger magnetic field was created in a limited tiny surface.
3. Equipped with high grade stainless steel shaft, ensured durability.
4. Quality 0.2mm Kawa saki Silicon steel stator, less iron loss and better cooling performance.
5. Lighter design, single motor weighs 1.7g only yet brings satisfied thrust and efficiency.
6. Suggested for 65-80mm frame size.
Package Include:
1 X 3BR-0802 Motor
5 X M1.4*3 Round head cross SUS screws
