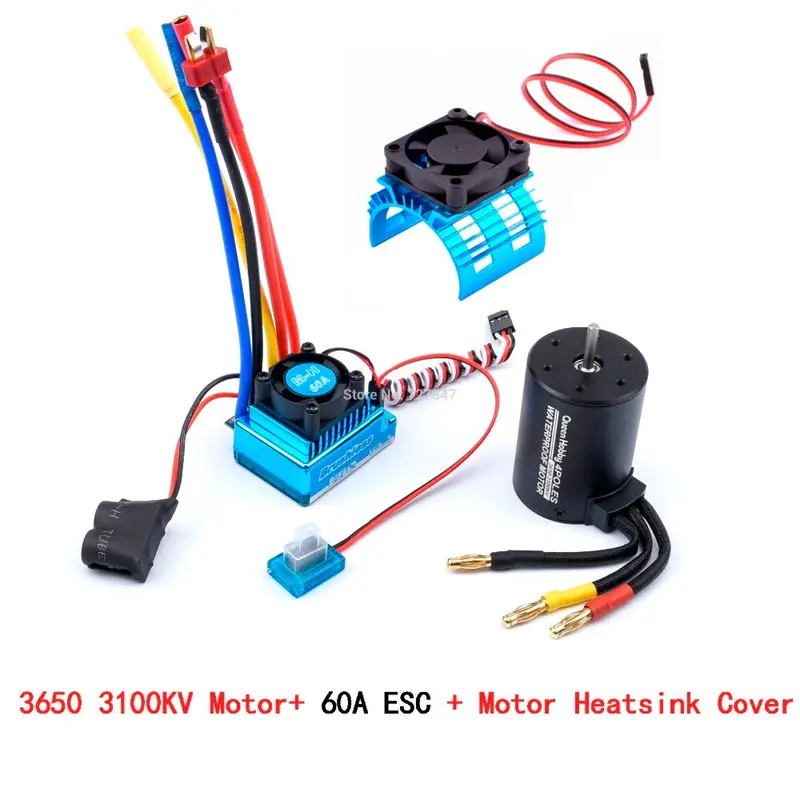

3650 Brushless Motor (3100KV) + Matching ESC Combo — 45A to 120A Options for 1:10 RC Cars and Boats

Description

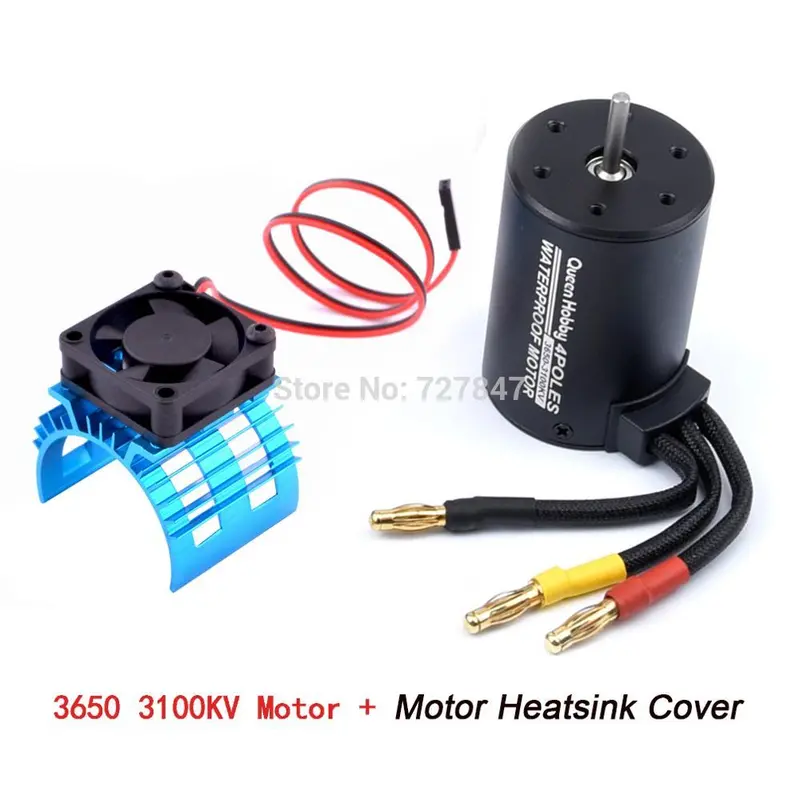

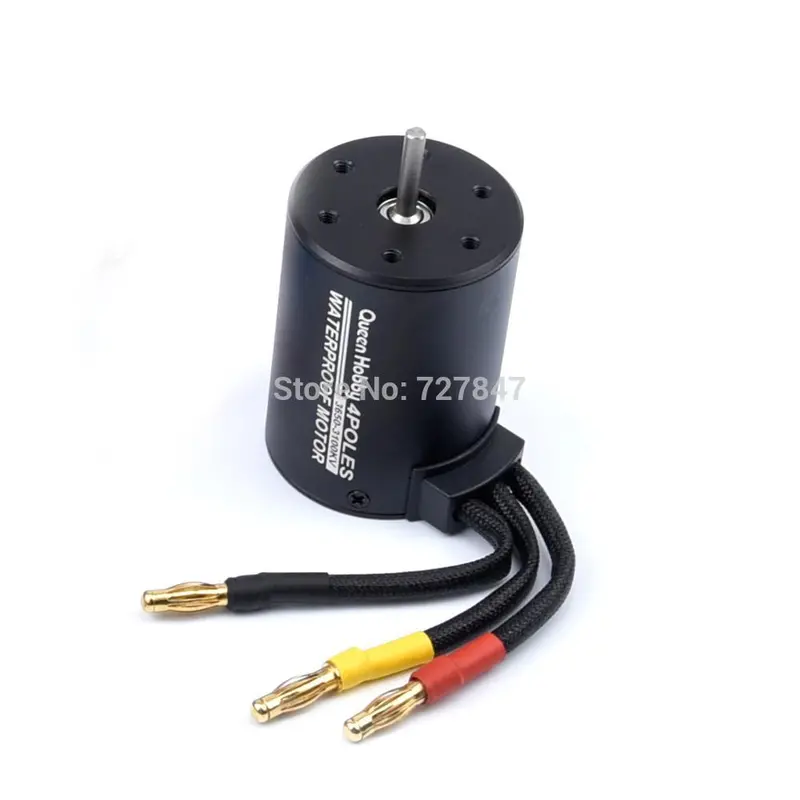

3650 3100kv motor used for 1/10 Car



3650-3100kv Specifications:



Watts: 900W Max voltage: <16V Max Amps: 56A KV(RPM/Volt): 3100KV Max RPM: 50000 Diameter: 36mm Length: 50mm Shaft length: 15mm Shaft diameter: 3.175mm Plug type: 4mm golden banana plug

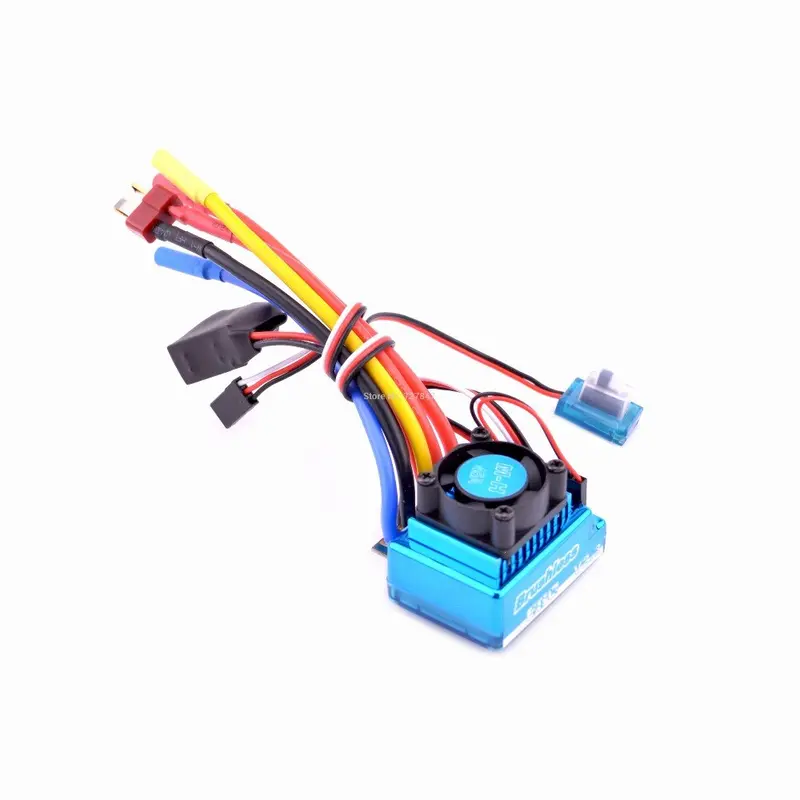

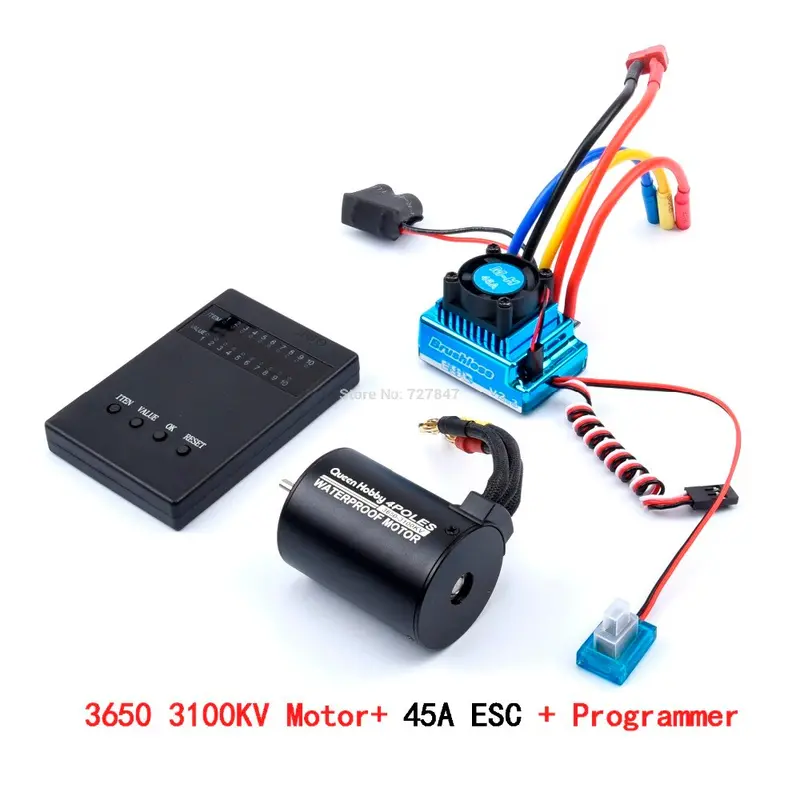

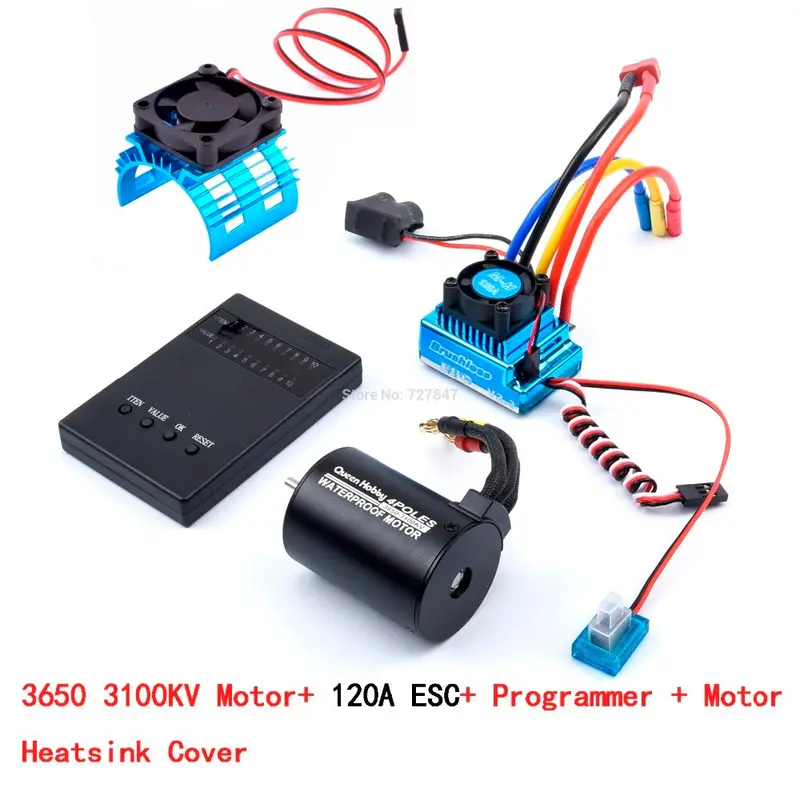

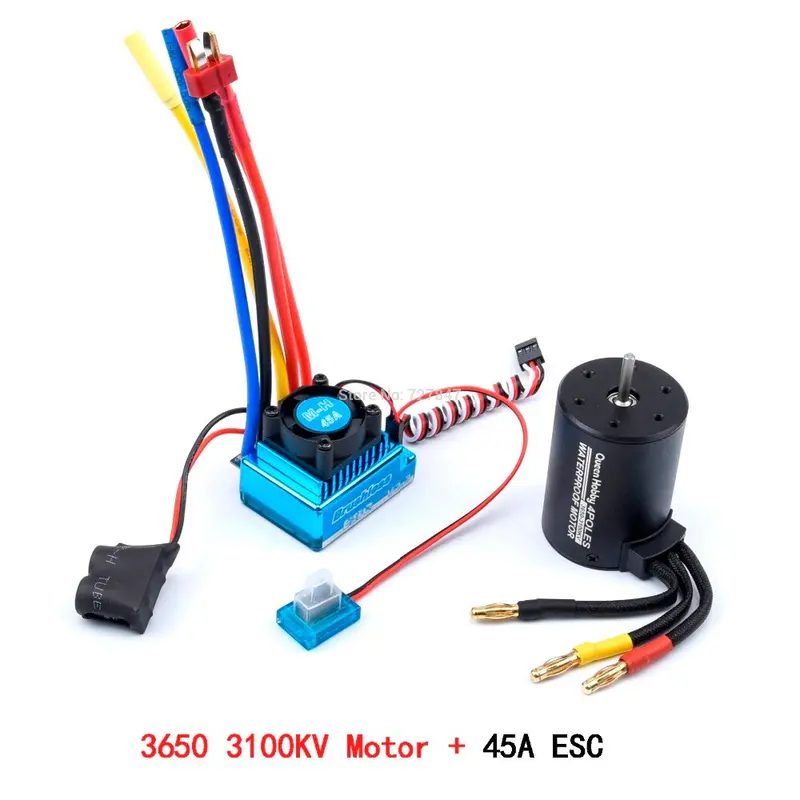

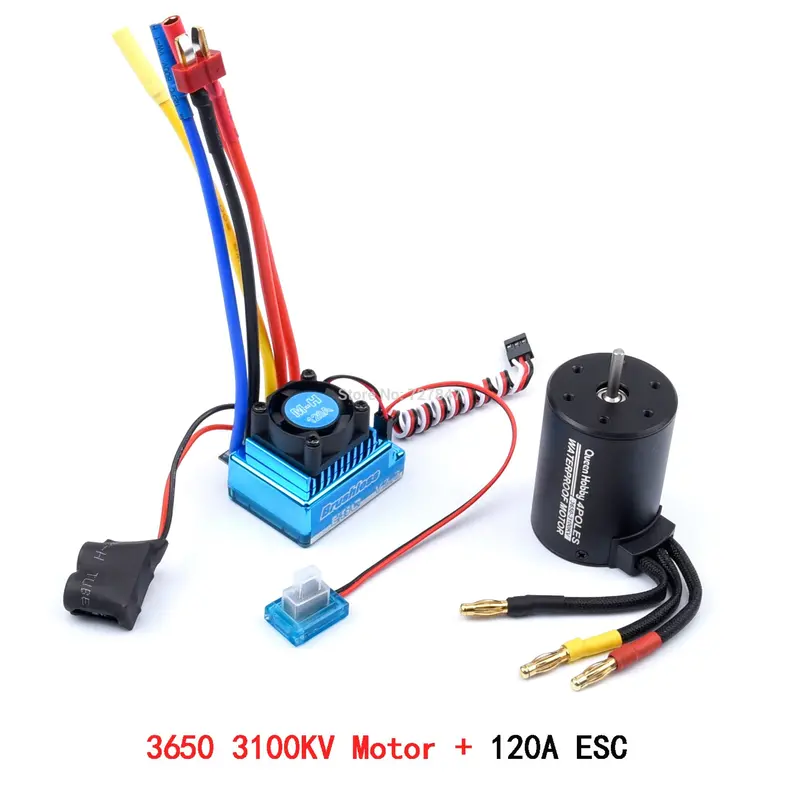

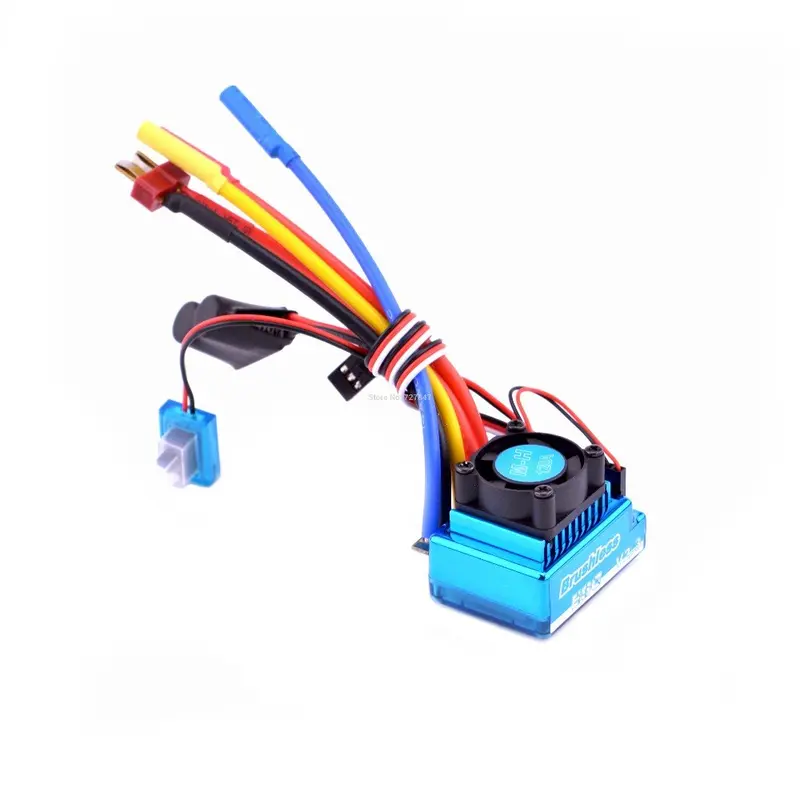

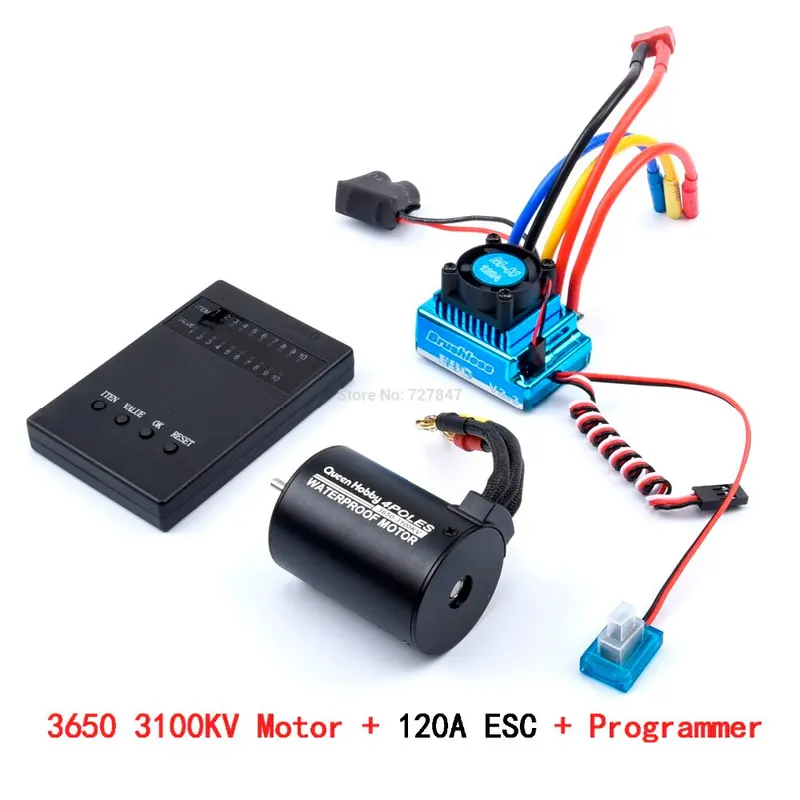

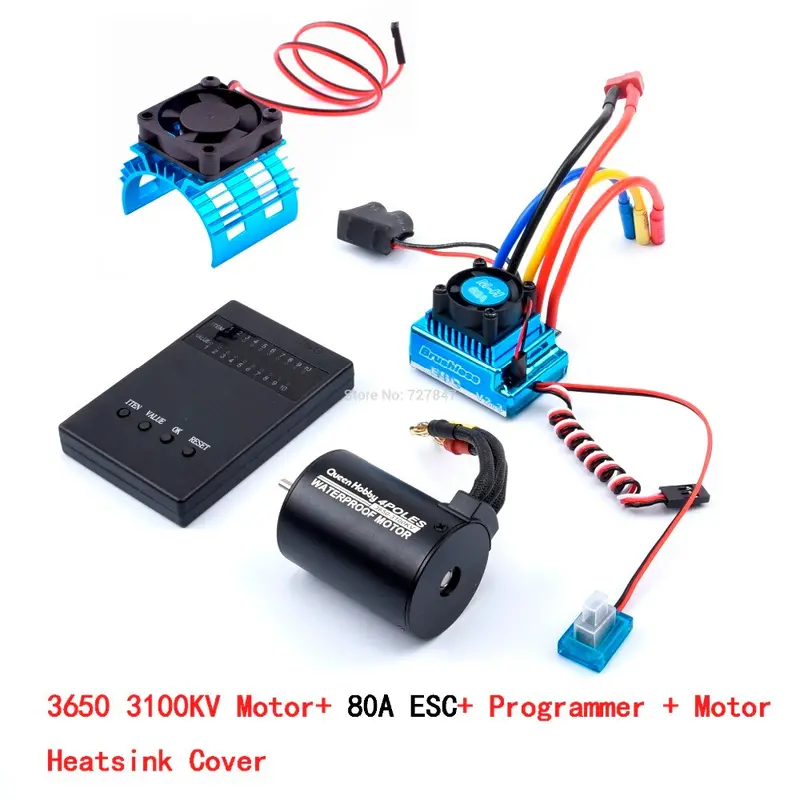

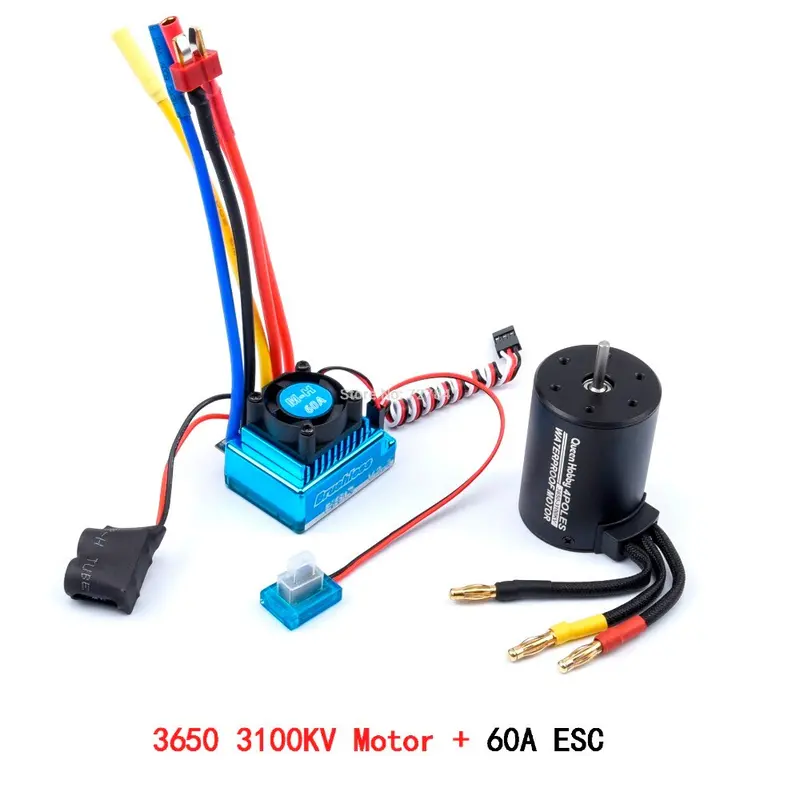

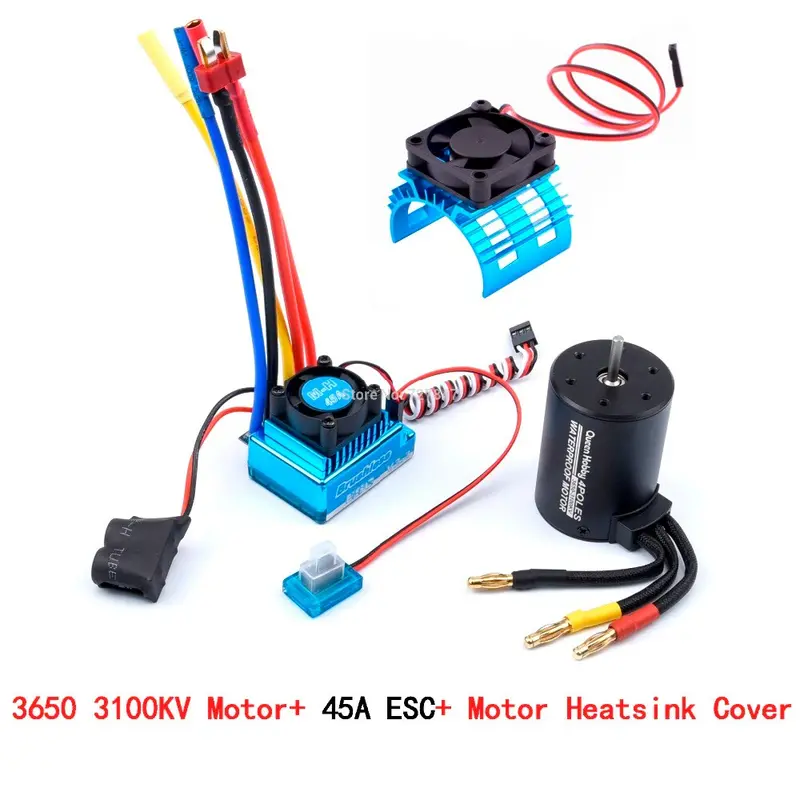

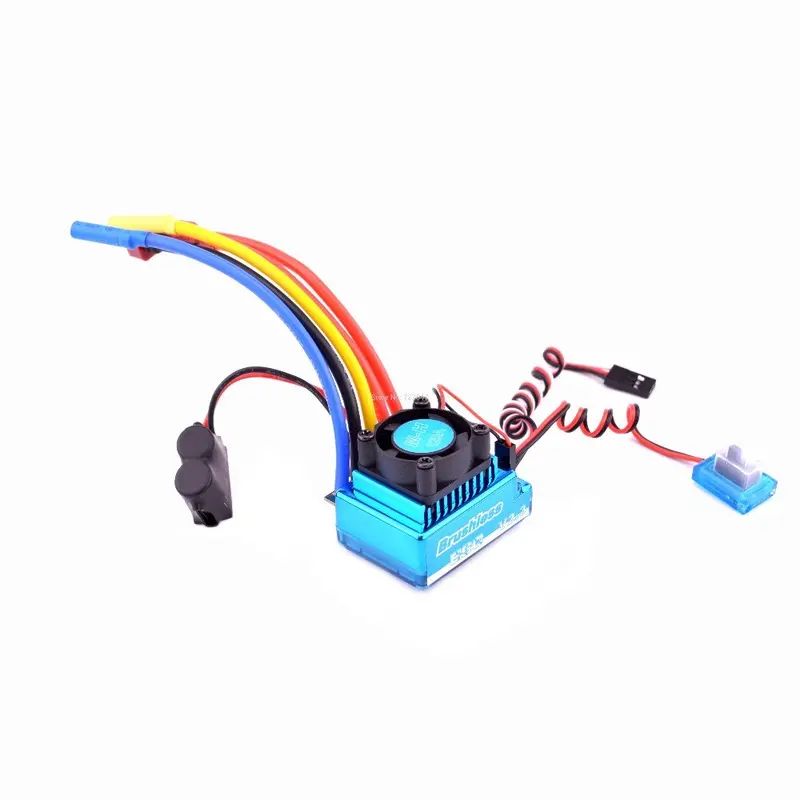

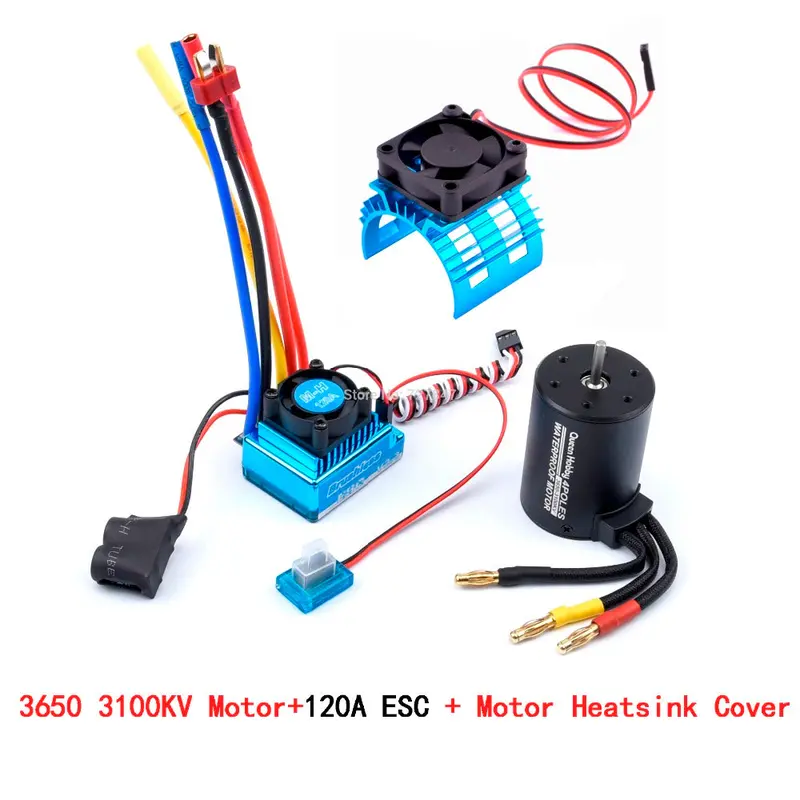

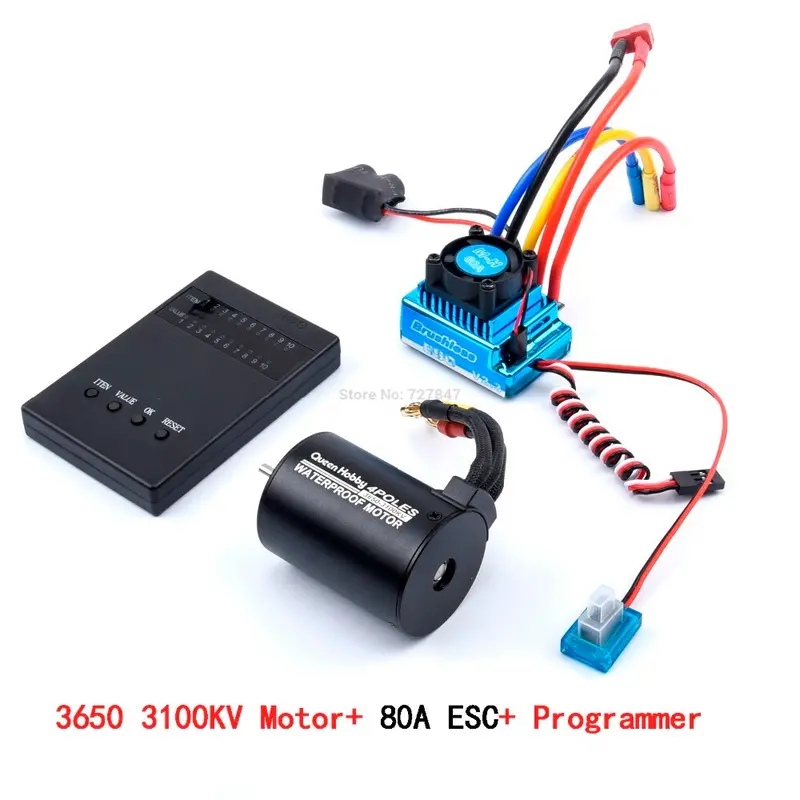

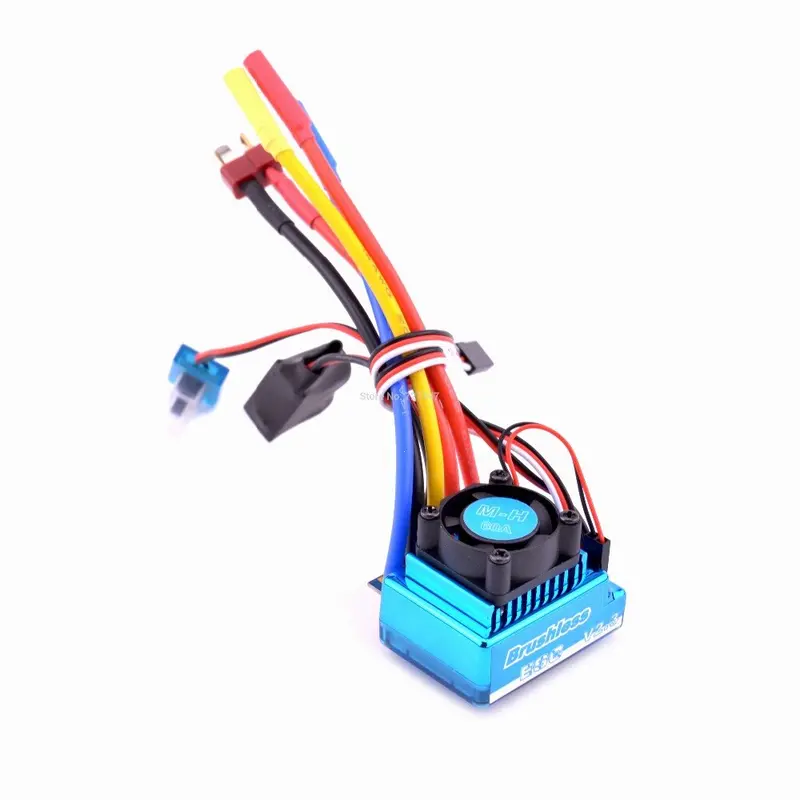

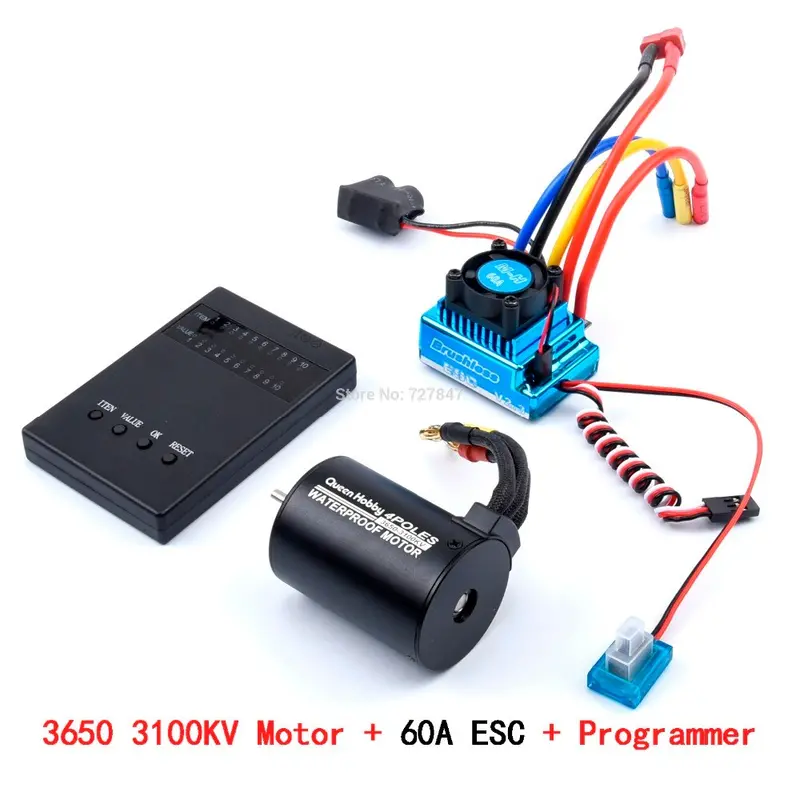

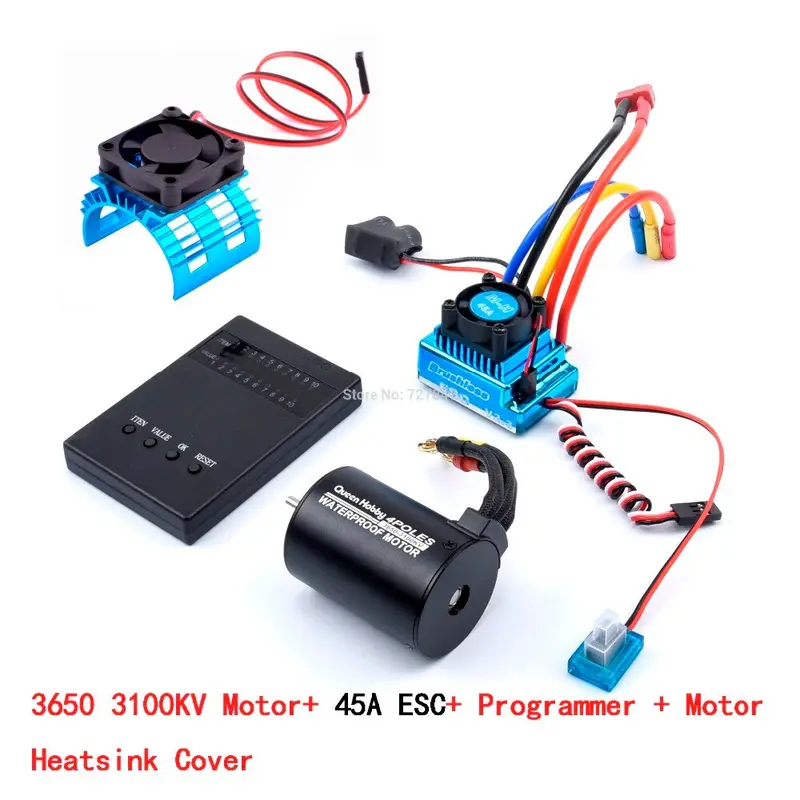

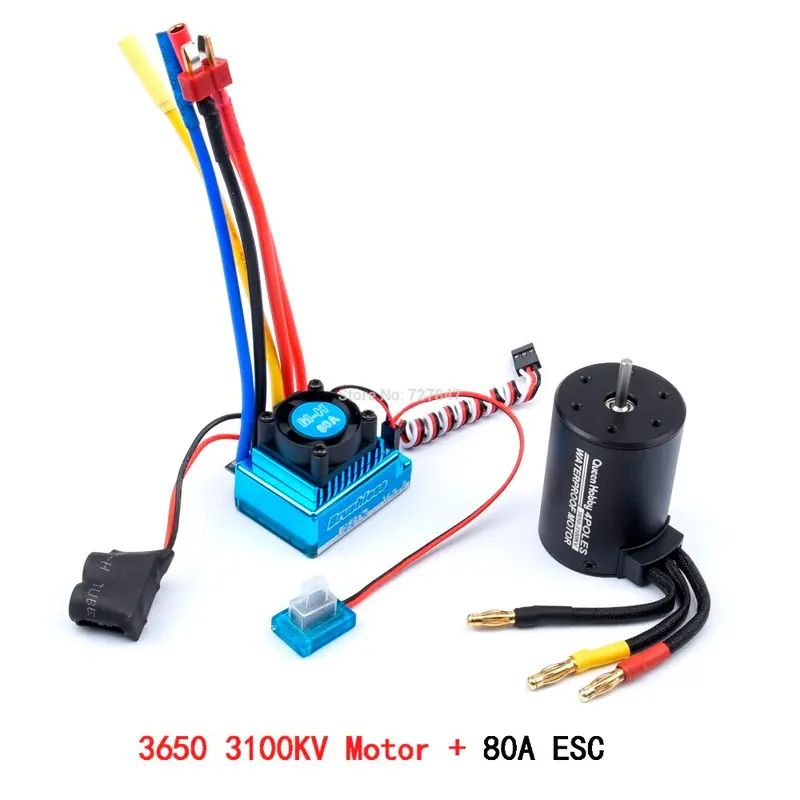

45A ESC Specification:   Continuous Current: 45A  Burst Current: 180A  Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd  BEC Output: 5.8V / 3A  Power Supply Plug: T Plug Male      60A ESC Specifications:    Item Name: Waterproof ESC  Continue Current: 60A  Burst current: 320A  Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd  BEC output: 5.8V / 3A  Power supply plugs: T plug male  Motor plugs: 4mm banana plug female      80A ESC Specifications:   Continue Current: 80A Burst Current: 480A Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd BEC output: 5.8V / 3A Power Supply Plug: T Plug Male Motor Plug: 4mm Banana Female Plug Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch   120A ESC Specifications:   Continuous Current: 120A Burst Current: 480A / 10sec Battery: 2-3s LiPo / 4-12s NiMh BEC output: 5.3V / 5A(Switch Mode) Power Supply Plug: T Male Motor Plug: Female 5mm Bullet Connector Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

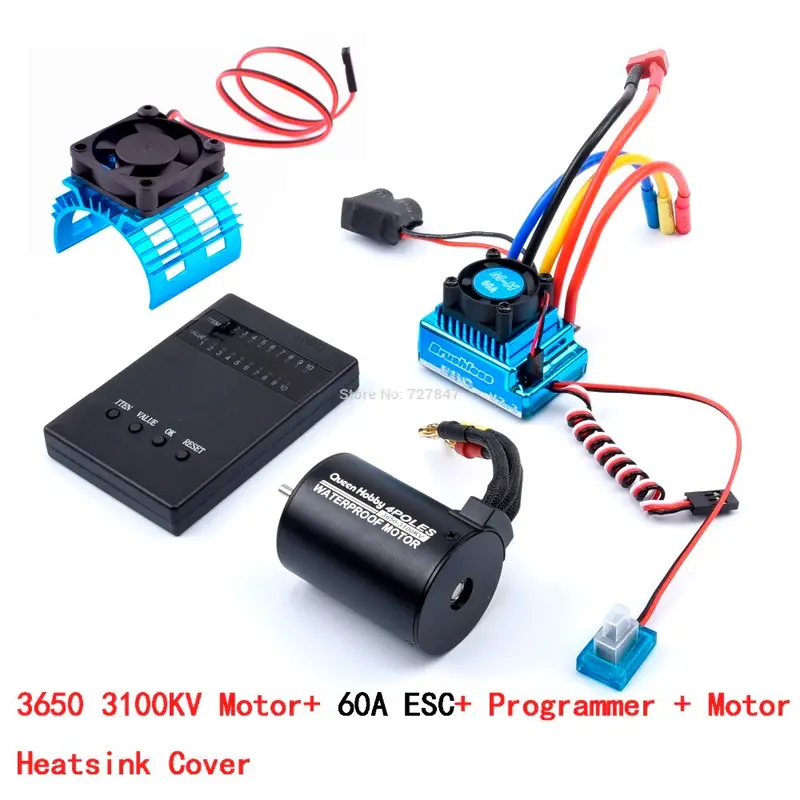

Programming Card for RC Car ESC Brushless Electronic Speed Controller   Features:   Light weight Easy to use Portable design Programming Card for RC Car ESC Brushless Electronic Speed Controller, which was specially designed for Brushless Electronic Speed Controller selled in our store.   Specifications:   Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off Start mode:Medium, soft, strong Max brake force: 25%, 50%, 75%, 100% Max reverse force: 25%, 50%, 75%, 100% Neutral range: 6%, 9%, 12%, work state



package including:

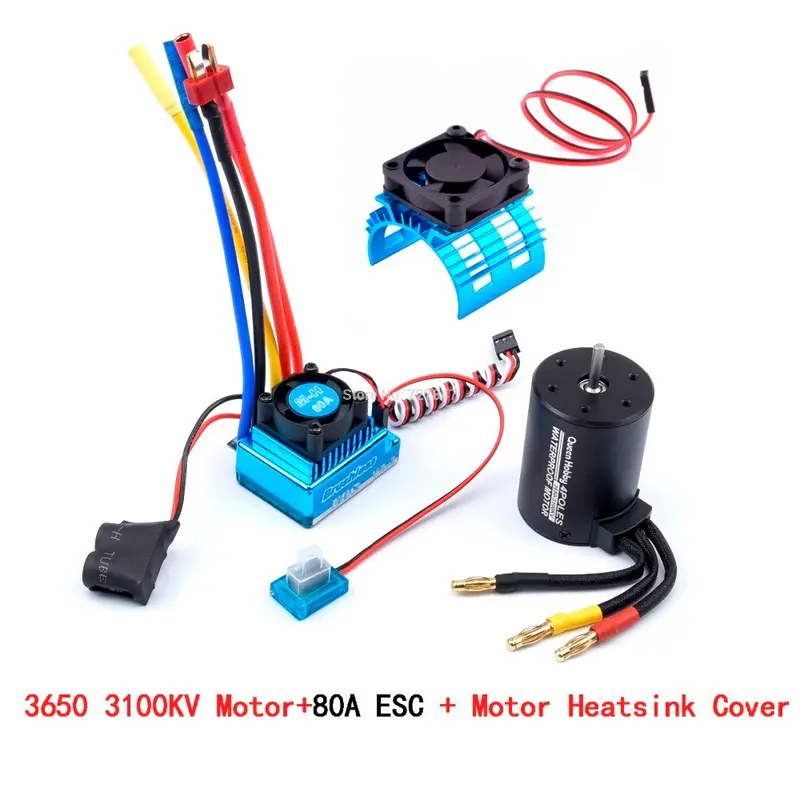

(as your choice as the picture showe)
