30A Mini Brushed ESC for RC Cars – Compact 4–8V Electronic Speed Controller (2019 Model)

Description

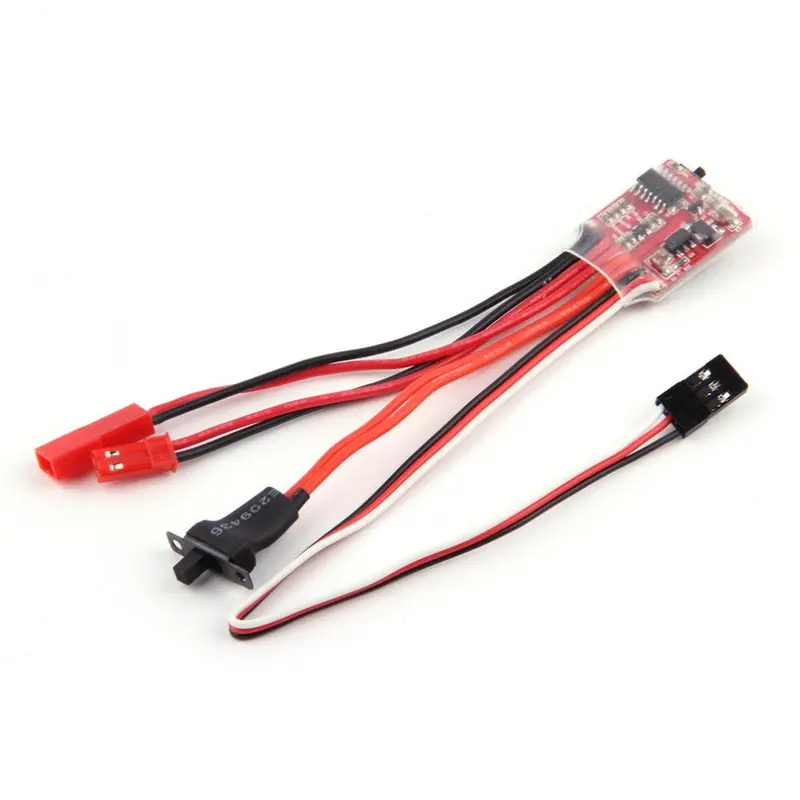

2019New Sale 30A 4-8V Mini Brushed Electric Speed Controller ESC Brush Electronic Motor Speed Controller For RC Car

If you choose more than 2 pcs ,please don’t choose the shipping way “China Post Ordinary Small Packet Plus”, it is not allowed to ship when the order amount is more than $5 ,thanks !Specification:100% brand new with high qualityMaterial: Synthetic MaterialSize: Approx.25 x 23 x 5mm/0.98 x 0.91 x 0.2″Weight: Aprox.13g (with line)Quantity: 1PcCurrent Parameters: Forward 30AInstantaneous peak 40ABack 20ABrake 40AUBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power)Voltage support: 4 ~ 8v can be directly on the 2s lithium (7.4V)Function: forward, reverse, brakeEasy to install, durable.High-quality metal casting.Lightweight, small size, easy to carry.Tips:JST header by default, with a switch.Wiring: Battery (must dividends positive black and negative)Motor (regardless of positive and negative)Black red and white third-line -> receiver CH2 (usually black by the outside, white by stickers)Adjustment: ESC is set in the middle of the range, the new control generally need to fine tune the throttle.The ESC does not light, is the median, throttle trim is controlled TH TRIM.Package Included:1 x Brushed ESC Note:Please allow minor error due to manual measurement.The colors may be a little difference for the different monitor display.
