3-Axis Gyro Stabilizer System – Flight Controller for FPV Airplanes, Helicopters, Delta Wings, and Fixed-Wing RC Models

Description

3-axis Flight Control Controller Stabilizer System Gyro for FPV Airplane Helicopter Fixed Wing Aircraft  Delta Wing RC Model

Description

Specially designed for RC airplane, 3 axis gyro improves fly stability

Support common fixed wing aircraft; delta wing; V tail RC models
Remote control can shut down 3AXIS gyro system, convenient for skillful players to operate planes manually
Improve stability & flexibility
Assemble your planes completely before assemble the 3 axis gyro. Shut down V tail & delta wing multi control function of radio, make the radio work for common planes.

Specification:

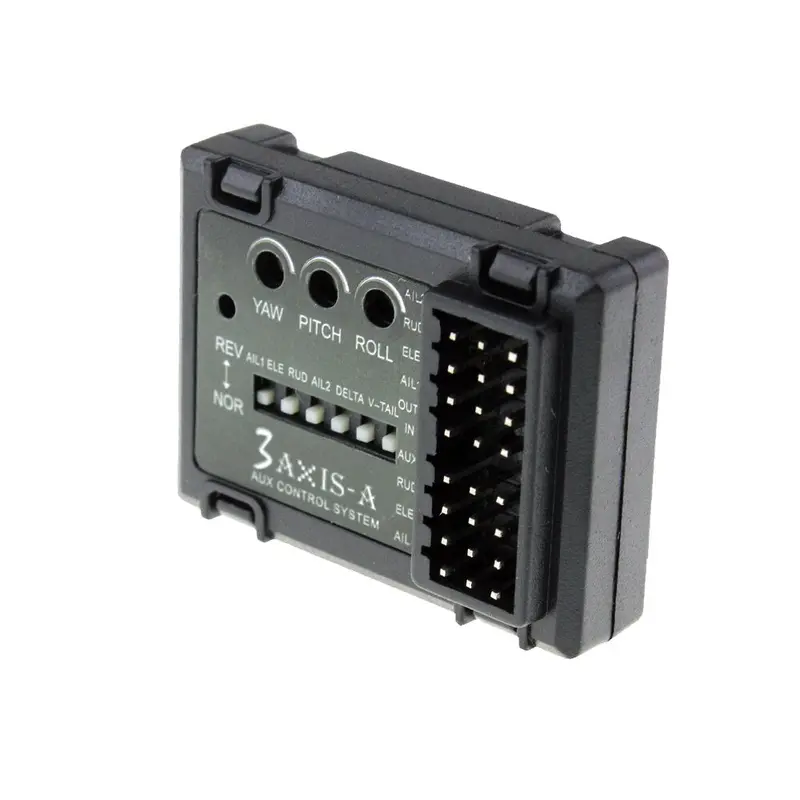

1. Item Name: 3 axis flight controller
2. Working power: DC 4V -6V
3. Working current: 18mA
4. Transmitter compatible: PPM, PCM, 2.4G
5. Working temperature: -20*~ 65*
6. Dimension: 38 × 28mm
7. Net Weight: 60g

Indicator light:
– Red indicator blink: initial status.
– Red indicator on: 3Axis radio in turn on status.
– Red indicator off: 3Axis radio in turn off status.
– Green indicator off: normal airplanes model.
– Green indicator on: V-tail multiple control model.
– Green indicator blink: Wing (Triangular empennage) multiple control model.

Package including

1 x 3-axis flight controller

4 x cable





*******************************************************************     Instruction Manual

*******************************************************************
