2× FS2A 4-Channel AFHDS-2A Mini Receivers – PWM Output, Compatible with Flysky I6, I6X, and I6S Transmitters

Description

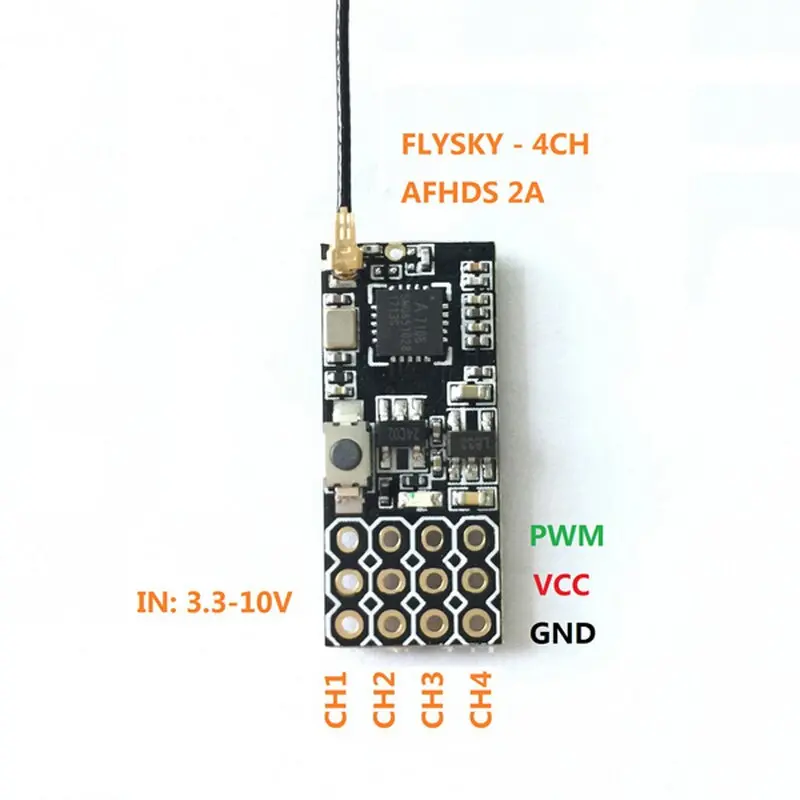

FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S Transmitter
Description:
Item name: Flysky FS2A 4CH ReceiverChannels: 4CHOutput signal: PWMFrequency range: 2.408-2.475GHZBand width: 135Receiver sensitivity: -92DBM2.4G mode: AFHDS 2AFailfe: YesSupply voltage: 3.3-10VDistance: 400+ metersWorking current: 20MADimensions: 11 * 25MMWeight: 0.9 grams
Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitterBind:1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.Failsafe settings:The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes  quickly several times and then always bright , failsafe settings is successful.
Pacakge Included:
2X FS2A 4CH AFHDS 2A Mini Compatible Receiver
