2-Pack DASMikro DAS87 Nano Surface Receiver – 2.4GHz 8-Channel AFHDS Module for Flysky Transmitters and Micro RC Cars

Description

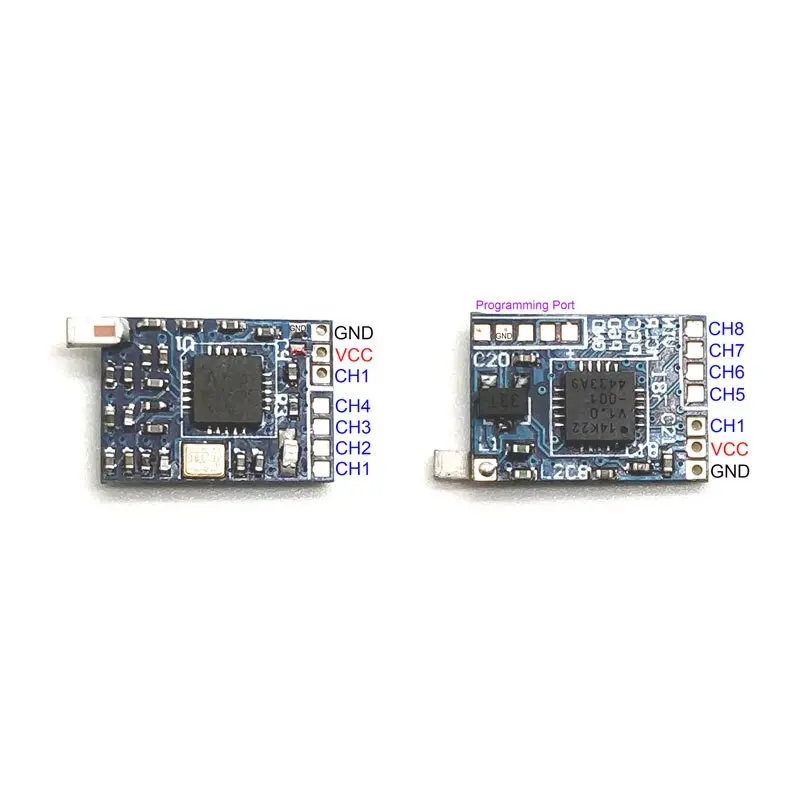

  Description:Item Name: DasMikro 8 Channel AFHDS Nano Surface ReceiverChannels: 8chFrequency Band: 2.4 GHz AFHDSModulation: PWMSize (W*Hx*D): 14 x 10 x 4mmWeight: 2g Features:Standard 2.4Ghz 8-Channel Receiver for Flysky Transmitter, compatible with Flysky GT2B, GT3B, GT3C, i6, i10, T6, CT6B, TH9X 2.4Ghz Transmitter AFHDS protocol. Ultra Compact size design with auto-bind.
Note: the new version don’t have antenna nymore, but you can sorder a 3cm long wire to the correr as antenna. Bind:There is no bind pin designed, the receiver has an “autobind” procedure just like with small quad-copters. When switched on, receiver tries to bind with transmitter for about 3s (led is blinking). If receiver find a transmitter (must be also in bind mode) then it recognize the transmitter and binds to it. If it can’t find any transmitter in bind mode nearby, it falls back to a previously binded transmitter identifier and binds to that. This way, you save an extra pin and just need to bind only once. After bind procedure, If reception is ok then led if on, if no reception at all led if off, if reception if bad led is blinking randomly.
