16-Channel S.Bus / S.Bus2 to PWM/PPM Signal Converter (S2PW) for Multirotor Drones and FPV Racing Quads

Description

16CH S.BUS S.BUS2 PPM PWM Converter S2PW For RC Drone FPV Racing Multi Rotor

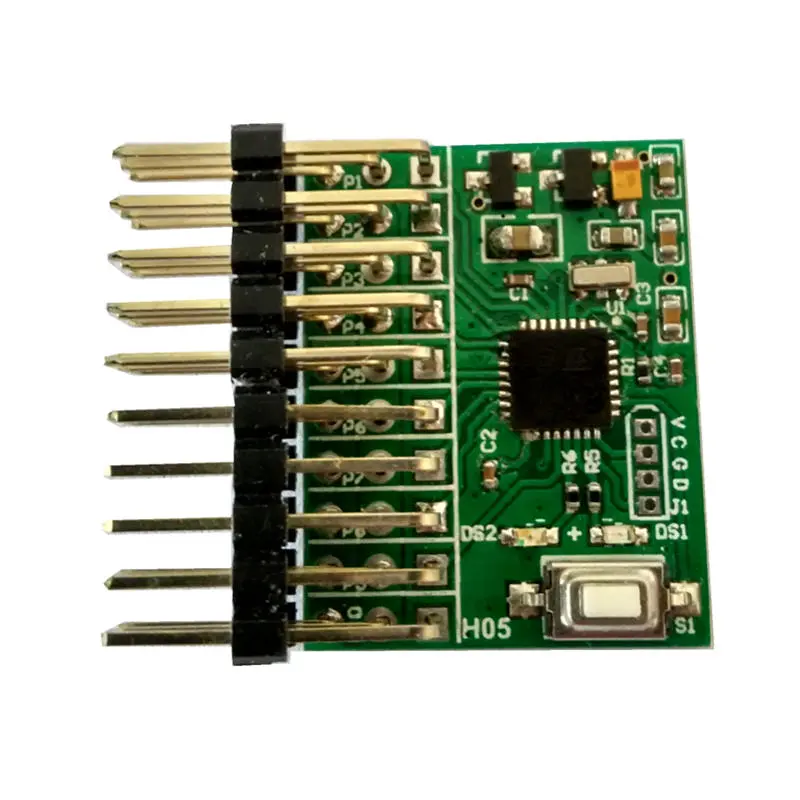

Description: Item name: S.BUS S.BUS2 PPM PWM converter Weight: 3.8g Size: 29x26x8mm Working voltage: 3.7-8.4V Working current: lower than 30mA   Feature: 1. Input signal will be automatically recognized, to achieve free switching between PPM-PWM and S.BUS. 2. Using STM32 microcontroller, external crystal oscillator. Fast signal processing, high precision output signal. 3. When the input signal is S.BUS, you can switch the output 1-8CH or 9-16CH by pressing the key.   Instructions: 1. When the 9CH pin input PPM signal, 1-8CH pin output PWM, 10CH pin output S.BUS signal, blue LED flashes one time per cycle. 2. When 1-8CH pin input one or more PWM signal, 9CH pin output PWM, 10CH pin output S.BUS signal, blue LED flashes two times per cycle. 3. When the 9CH pin input S.BUS signal, 1-8CH pin output PWM, 10CH pin output PPM signal, blue LED flashes three times per cycle. 4. Without signal input, blue LED won’t flash.   Package included: 1 x S.BUS S.BUS2 PPM PWM converter
