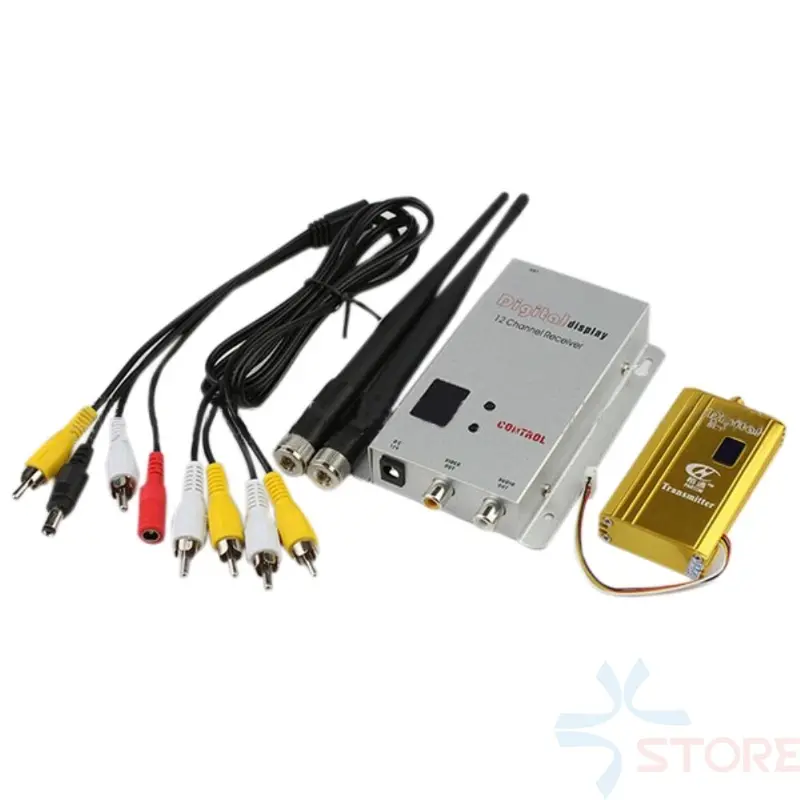

1.2GHz 8-Channel 1500mW Wireless AV Transmitter/Receiver Kit – Long-Range FPV Video Link for QAV250 and 250-Class Racing Quads

Price range: $84.50 through $93.89

Quantity
SKU: N/A Category: Brand:

Description

Partom FPV 1.2Ghz 1.2G 8CH 1500mw Wireless AV Audio Video Transmitter And Receiver For QAV250 250 FPV Quadcopter

aeProduct.getSubject()
aeProduct.getSubject()

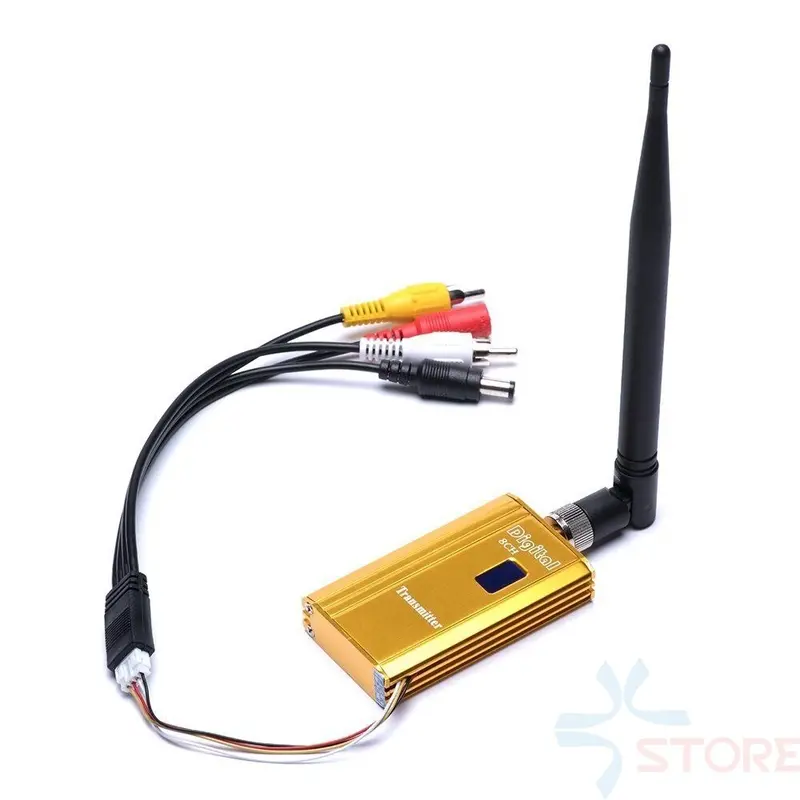

Transmitter Parameter:
Weight:80g
Dimension:73*41*14mm
Working Voltage:DC12V
Working Current:≤400mA
Working Frequency:1.2G-1.3G
Working Channels:8CH
Connector: transmitter module side RP-SMA jack, antenna SMA plug
Frequency:CH0:910 CH1:980 CH2:1010 CH3:1040 CH4:1080 CH5:1120 CH6:1160 HC7:1200 HC8:1240 CH9:1280 CHH:1320 CHC12:1360 CHD:1258 CHE:1100 CHF:1140 (MHz)
Working Power:1500mW
Transmitting Range:1000m~2000m (In Open Fields)
Transmitter accessories:transmitter,antenna,Tx cable,1.25A adapter.

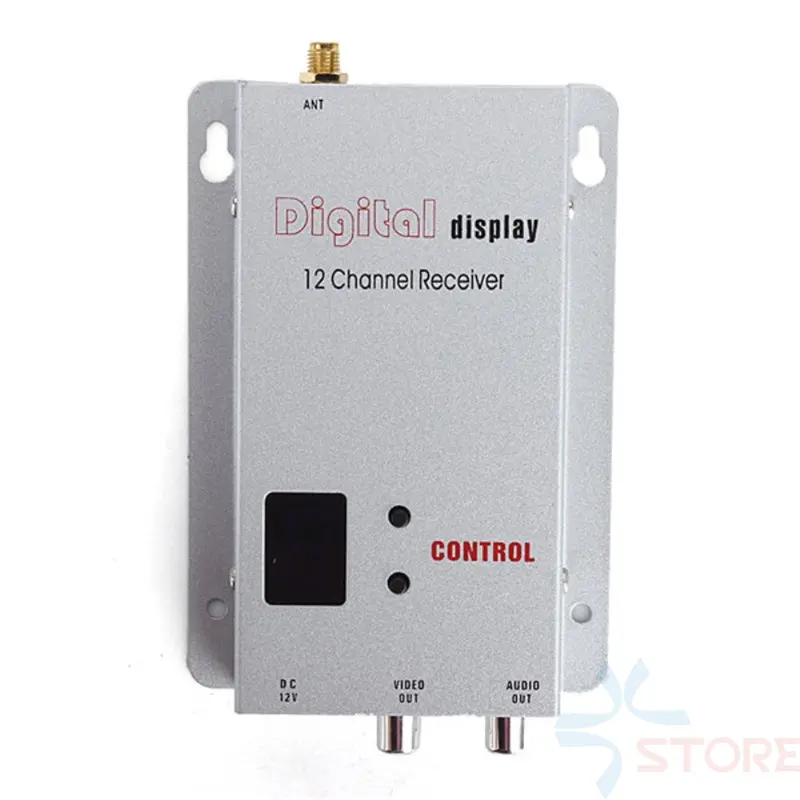

Receiver Parameter:
Weight:115g
Dimension:115*80*21mm
Working Voltage:DC12V
Working Current:≤260mA
Working Frequency:1.2G
Working Channels:12CH
Connector:receiver module side RP-SMA jack, antenna SMA plug
Receiving frequency:1.2GHz – HC1:910 HC2:980 HC3:1010 HC4:1040 HC5:1080 HC6:1120 HC7:1160 HC8:1200 HC9:1240 HC10:1280 HC11:1320 HC12:1360(MHz)
Receiver Accessories:Receiver,antenna,AV cable.(We don’t offer adatper for receiver,please use DC 12V 1A adapter.)
The whole set is about 585g.

You need monitor to show video.

FPV Monitor Video Screen Not Blue Screen 7 Inch 800x480 Color TFT LCD Display W/ sunhood for Camera Drone Quadcopter RC Airplane FPV Monitor Video Screen Not Blue Screen 7 Inch 800×480 Color TFT LCD Display W/ sunhood for Camera Drone Quadcopter RC Airplane USD 26.5/set



Require battery

3s 11.1V 2200mAh 25C Battery High power Li-po battery for RC helicopter rc airplane rc drone quadcopter 3s 11.1V 2200mAh 25C Battery High power Li-po battery for RC helicopter rc airplane rc drone quadcopter USD 17.9/piece



Require Camera

FPV 700TVL Wide Angle 2.8mm Lens 90 Degree 1/4 Cmos FPV Camera NTSC PAL For FPV Multicopter Part FPV 700TVL Wide Angle 2.8mm Lens 90 Degree 1/4 Cmos FPV Camera NTSC PAL For FPV Multicopter Part USD 11.99/piece 700TVL CCD Mini CCTV Security FPV Focus Zoom Camera OSD D-WDR 2.8-12mm Mega Pixel Lens for FPV UAV Aerial Photography 700TVL CCD Mini CCTV Security FPV Focus Zoom Camera OSD D-WDR 2.8-12mm Mega Pixel Lens for FPV UAV Aerial Photography USD 25/set Drone Camera 800TVL 1/3" COMS PAL or NTSC 2.1mm Mini FPV Camera for RC QAV250 Helicopter DJI phantom FPV Photography Drone Camera 800TVL 1/3″ COMS PAL or NTSC 2.1mm Mini FPV Camera for RC QAV250 Helicopter DJI phantom FPV Photography USD 13.8/piece FPV Audio Video Camera Mini 800TVL 1/3 Inch COMS 140 Degree Security CCTV HD Camera For QAV250 Quadcopter FPV Photography FPV Audio Video Camera Mini 800TVL 1/3 Inch COMS 140 Degree Security CCTV HD Camera For QAV250 Quadcopter FPV Photography USD 7.48/piece FPV 600TVL 1/4 1.8mm CMOS 170 Degree Wide Angle Lens Camera PAL/NTSC image sensor CCTV camera module chip board UAV Toy Parts FPV 600TVL 1/4 1.8mm CMOS 170 Degree Wide Angle Lens Camera PAL/NTSC image sensor CCTV camera module chip board UAV Toy Parts USD 9.99/piece
